Digital viscometer MDV-2C | Labomiz

Digital viscometer MDV-2C

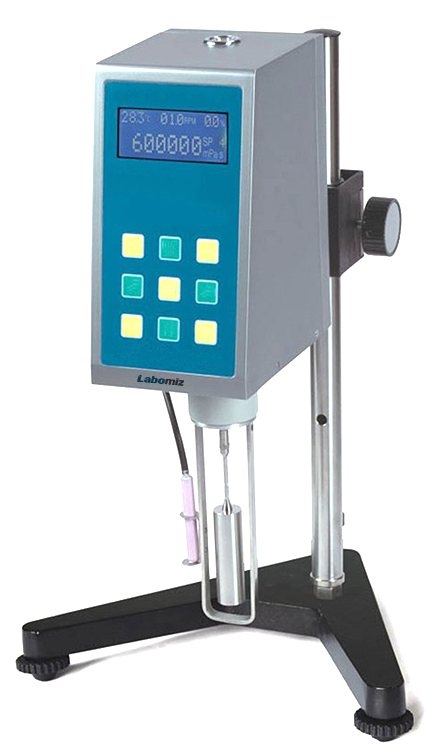

Digital viscometer MDV-2C is a bench top, microprocessor controlled unit. Equipped with RTD element ( sensor ) measures the varying temperature. Panel includes digital LCD screen and striking keys to set parameter. Provision of connecting to PC allows user to store, compare and record the data for future interpretation.

Measurement range	4 mPa.s ⁓ 8 × 10⁶ mPa.s
Rotor speed	0.1 rpm ⁓ 99.9 rpm
Rotors	4 types
Accuracy	± 1.0 % (FS)
Repeatability	± 0.5 %
Power supply	220 V ± 10 % V; 50 Hz ± 1 Hz
Temperature unit dimensions	300 × 100 × 150 mm
Temperature unit weight	4 kg
Viscometer dimensions	282 × 285 × 400 mm
Viscometer weight	8 kg

Surface-mount device (SMD )

Gearless driven ( Noiseless operation )

Displays Max measurable viscosity, rotor number and speed

Output : RS232 interface

Used to measure the viscosity of grease, paint, coatings, drugs, food, cosmetics, adhesive, etc. It also measures liquid viscosity resistance and absolute viscosity.

MDV-2C
