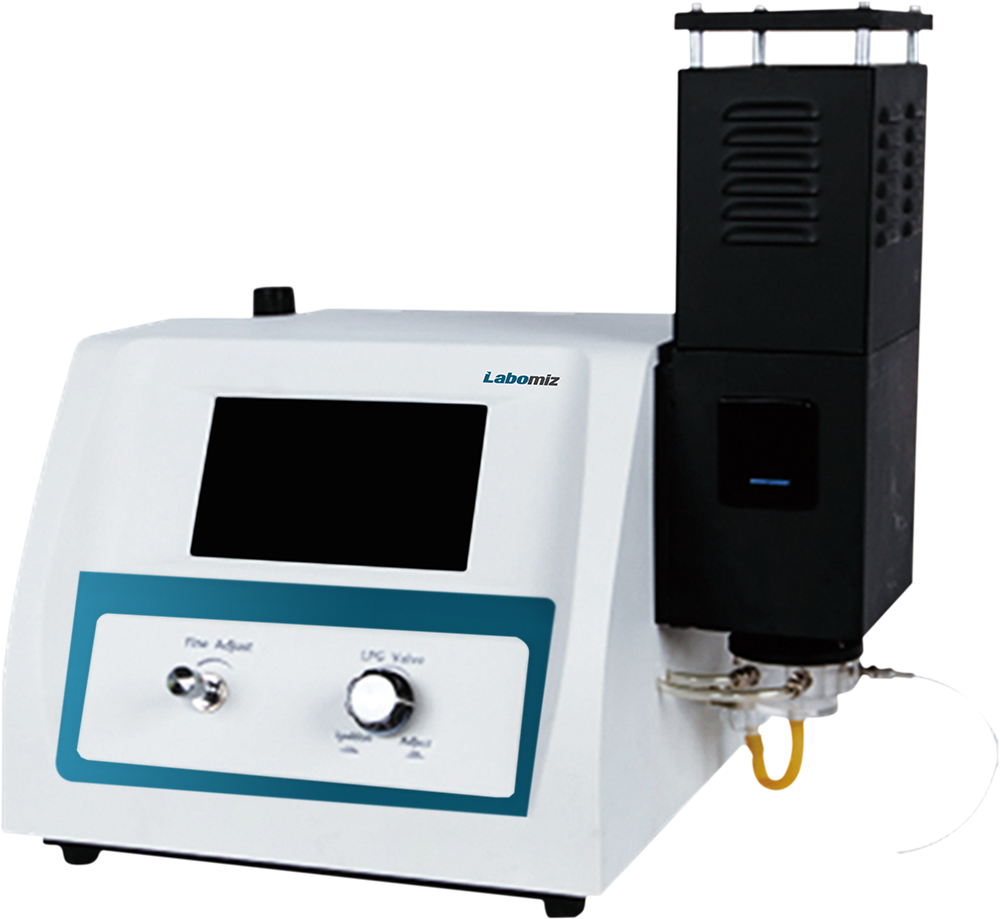

Flame Spectrophotometer MFSP-1F
Model: MFSP-1F · Category: Spectrophotometer
Flame Spectrophotometer MFSP-1F is an analytical instrument with pre-selection flame sizes for elemental detection. Liquefied petroleum gas is consumed for burning of the flame to produce luminescence. It is equipped with a flame protection for safety of the operator.
Specifications
| Elements detected | K, Na, Li, Ba, Ca |
|---|---|
| Sensitivity | K- 0.01 ppm Na- 0.01 ppm Li- 0.1 ppm Ca- 2 ppm Ba- 6 ppm |
| Range | K- 0 ppm ~ 100 ppm Na- 0 ppm ~ 160 ppm Li- 0 ppm ~ 100 ppm Ca- 0 ppm ~ 1000 ppm Ba- 0 ppm ~ 3000 ppm |
| Reproducibility | 3%CV for 7 consecutive samples |
| Linearity error | K- < 0.195 ppm Na- < 0.69 ppm Li- ≤ 0.15 ppm Ca- ≤ 3 ppm Ba- ≤ 9 ppm |
| Sample uptake | < 6 mL/min |
| Response time | < 8s |
| Ambient temperature | 10 °C ~ 35 °C |
| Humidity | ≤ 85% |
| Power supply | AC 110 V ±10%; 50 Hz AC 220 V ±10%; 60 Hz |
| Power consumption | 250 W |
| Dimensions | 570 × 560 × 400 mm |
| Weight | 18 kg |
Features
| Adjustable measuring range |
| Direct concentration read out |
| Large LCD touch screen display for ease of accessibility |
| Correlation coefficient with automated calculative function |
| Equipped with an air compressor for stable flow rate of air during flammation |
| USB interface |
Applications
Used in the fields agriculture, chemistry, pharmacology, pathology, biology, forensics, etc. for analysis of particular elements in the material.
Standard Accessories
| Sr. No. | Name of the accessory | Quantity |
|---|---|---|
| 1. | Air compressor | 1 unit |
