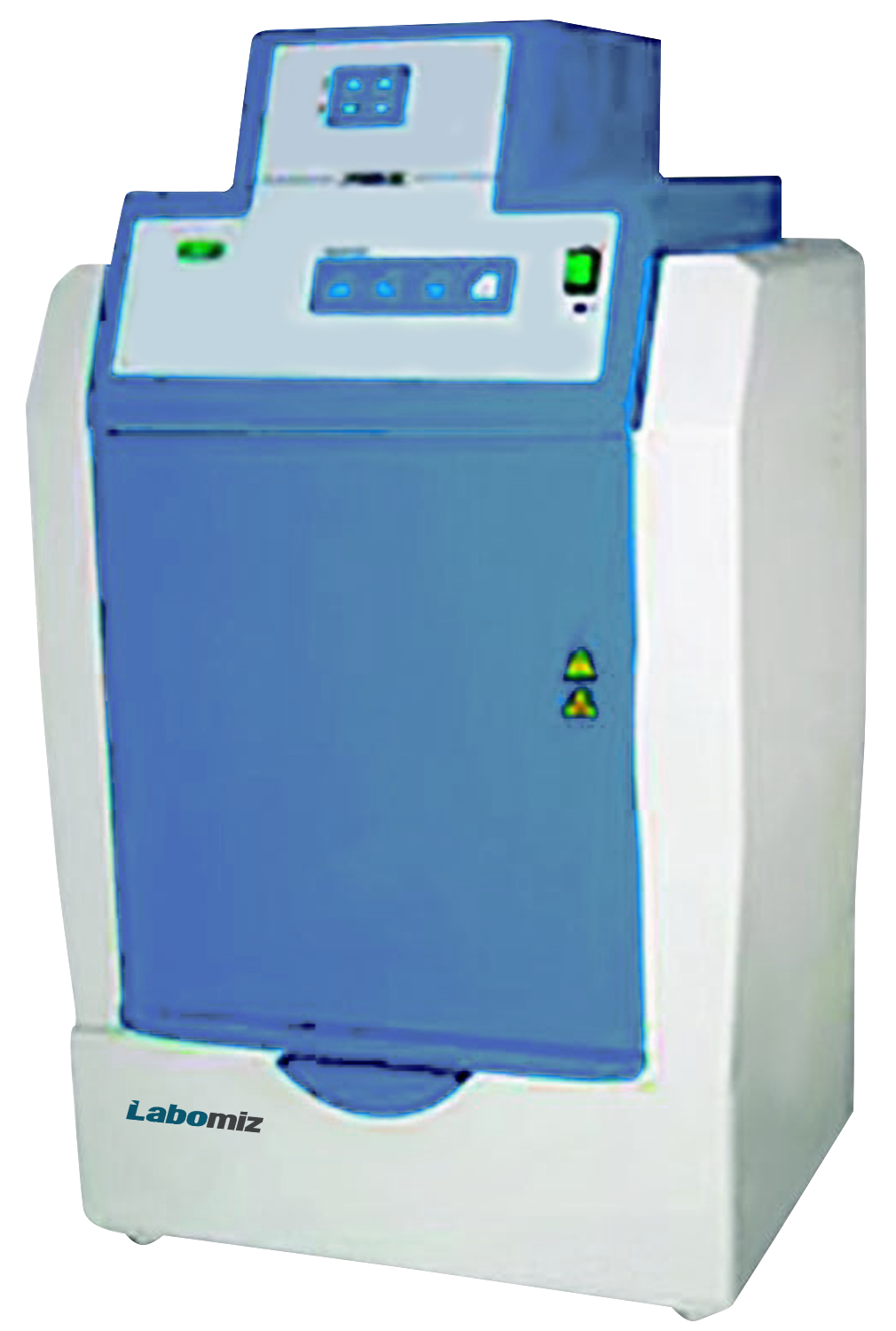

Gel Document Imaging system MGDI-1A

Gel Document Imaging system MGDI-1A is a gel imaging unit with CCD resolution 1.4 megapixels. High quality zoom lens for enlarging and shrinkage of gel photos. Incorporates gel filters for filtering background noise eliminating artifacts. Features control panel for adjusting zoom, focus, aperture, UV light and white light. Light safety switch shut down UV light when door is opened and reactivates when door is closed.

Resolution	1.4 megapixels
Effective pixels	1280 x 1024
Pixel Density	10 bit
Pixel size	5.4 x 5.4 µm
Signal to Noise resolution	≥ 56 dB
Sensitivity	Can detect the double chain DNA of EB staining below 20 pg
Camera	Low illumination and high resolution digital CCD
Zoom lens	F= 1:1.2,2/3 inch 6 times zoom lens
Filter	590 nm
UV light Transmission Area (W x L)	250 x 200 mm
Visible Light transmittance Area (W x L)	250 x 210 mm
Transmission UV wavelength	302 nm
Reflectance UV wavelength	254 mm,365 mm
Transmission UV lamp power	8 W
Reflectance UV lamp power	11 W
Internal dimensions (L x W x H)	470 x 405 x 820 mm
External dimensions (L x W x H)	770 x 700 x 1430 mm
Gross weight	71 kg

Effective pixels - 1280 x 1024

CCD with lower lux and high resolution ensures whole screen display

Six times zoom lens to enlarge and shrink gel photos

Multilayer gel filters for filtering background noise

Timer light switch shuts lights within 15 minutes delay

Indicator ensures gel to be placed in center position

Drawer style gel platform for easy to operate and observe gel

Used in molecular biology labs, clinical and research labs, for immunoassay, gel and blot imaging, protein detection, 2-D electrophoresis, etc.

Download Catalog

UV Transilluminator LB-10UVT is an illumination unit with reflectance UV lamp power 11 W. Features uniform light with high quality filter glass ensures efficiency. It can be used in all weather conditions eliminating the need for dark room.

Features :

Operating port for gel cutting
No requirement of dark room
Uniform light, long life service

Applications :

Used in molecular biology, chemistry, immunology, food industry, pharmaceutical company, biotechnology to observe, cut and photograph electrophoresis gel, protein analysis, etc.

Specifications :

Model No	LB-10UVT
Reflectance UV lamp power	254 nm (11 W), 365 nm (11 W)
Transmission size (W x L)	200 x 150 mm
Transmission UV wavelength	302 nm
Reflectance UV wavelength	254 nm , 365 nm
Transmission UV lamp power	302 nm (8 W)
Power supply	AC 110 V ± 10 %, 50 Hz
	AC 220 V ± 10 %, 60 Hz
External size (W x D x H)	435 x 295 x 490 mm
Package size (W x D x H)	700 x 640 x 810 mm
Net weight	17 kgs
Gross weight	45 kgs
