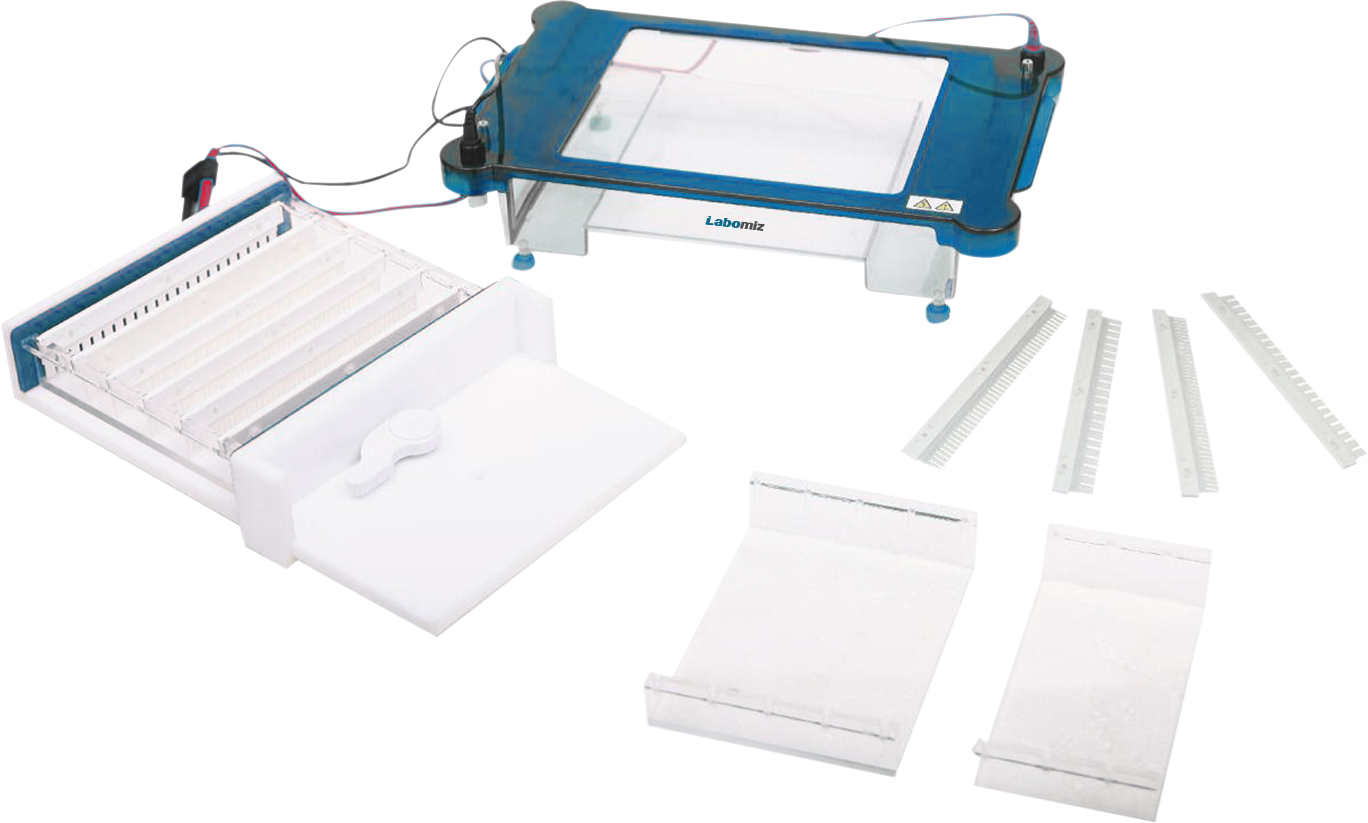

Horizontal Electrophoresis Unit MHEU-2F
Model: MHEU-2F · Category: Electrophoresis
Horizontal Electrophoresis Unit MHEU-2F is a high resolution horizontal system with leak proof assembly for electrophoretic procedures. Large volume buffer ensures cooling effects and stable pH value for running gel at high voltage. Integrated transparent safety lid avoids electricity leakage and sample volatilizing in the cell. Inclusive long life platinum electrodes and high transparent material for gel molding.
Specifications
| Gel trays (W x L) | 200 x 200 mm, 200 x 150 mm, 200 x 100 mm |
|---|---|
| Buffer volume | 1800 mL |
| Rows of combs | 1 ~ 6 |
| Comb thickness | 1 mm, 1.8 mm |
| No of samples | 17 to 104 |
| Gel tray | 5 mm |
| Gel making mode | Gel casting |
| External dimensions(L x W x H ) | 397 x 230 x 93 mm |
| Gross weight | 3.3 kg |
Features
| Dismountable electrodes (easy maintenance) |
| Automatic power off when lid is removed |
| Lugs for easy lid removal and transportation |
| High quality gel casting apparatus prevents gel leakage |
Applications
Used in molecular biology, forensic science, research and diagnostic lab, microbiology, biochemistry to separate DNA, RNA and proteins for DNA fingerprinting, drug testing, protein analysis, genetic testing, PCR amplification, sample quantification, etc.
Standard Accessories
| Sr No | Accessory name | Quantity |
|---|---|---|
| 1 | Body tank with electrode | 1 |
| 2 | Gel tray (200 x 200 mm) | 1 |
| 3 | Gel tray (200 x 150 mm) | 1 |
| 4 | Gel tray (200 x 100 mm) | 1 |
| 6 | Gel casting | 1 |
| 7 | 1.0 mm thickness 17 wells comb | 2 |
| 8 | 1.8 mm thickness 17 wells comb | 2 |
| 9 | 1.0 mm thickness 22 wells comb | 2 |
| 10 | 1.8 mm thickness 22 wells comb | 2 |
| 11 | 1.0 mm thickness 36 wells comb | 2 |
| 12 | 1.8 mm thickness 36 wells comb | 2 |
| 13 | 1.0 mm thickness 44 wells comb | 2 |
| 14 | 1.8 mm thickness 44 wells comb | 2 |
| 15 | Level adjustment of leg button | 4 |
| 16 | Electrical cable | 1 |
