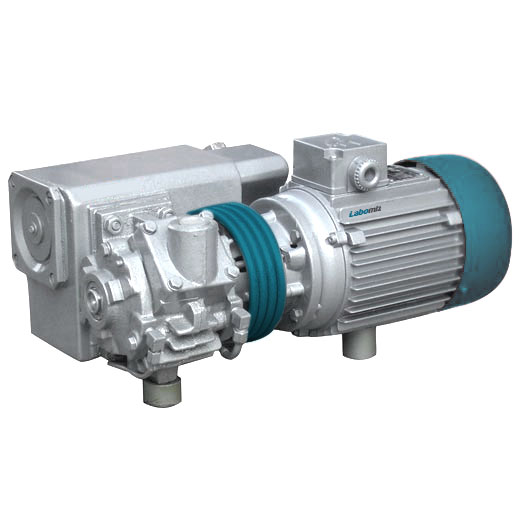

Rotary Vane Vacuum Pump MLRVP-1C

Rotary Vane Vacuum Pump MLRVP-1C is designed with unique lubrication system, built-in oil pump and with a large oil volume capacity ranging from 0.5 L to 4.0 L. In addition to providing smooth, pulse-free air flow, these oil sealed rotary displacement pump are compact and easy to install and operate, have low starting and running torque requirements, produce minimal noise or vibrations and are capable of long, service-free life.

Pumping Speed666.67 L / min
Ultimate Pressure50 Pa
Oil Capacity2 L
Rotating Speed1400 rpm
Inlet and OutletG 11 / 4 inch
Weight40 kg / 58 kg
Dimension630 x 290 x 260 mm
Power1100 W
Power Supply220 V, 50 Hz

Space-saving and ideal for systems integration

High pumping speeds with small dimensions

Gas ballast valve to pump little water vapor

Oil-anti-suck back device for convenient starting

Efficient air cooling system

Eco-friendly exhaust gas free of oil mists

Compact, reliable and powerful and easy to maintain

Quiet, low-vibration operation

These rotary vane vacuum pumps are used in the vacuum packaging, drying, distillation, plastic and other industries.
