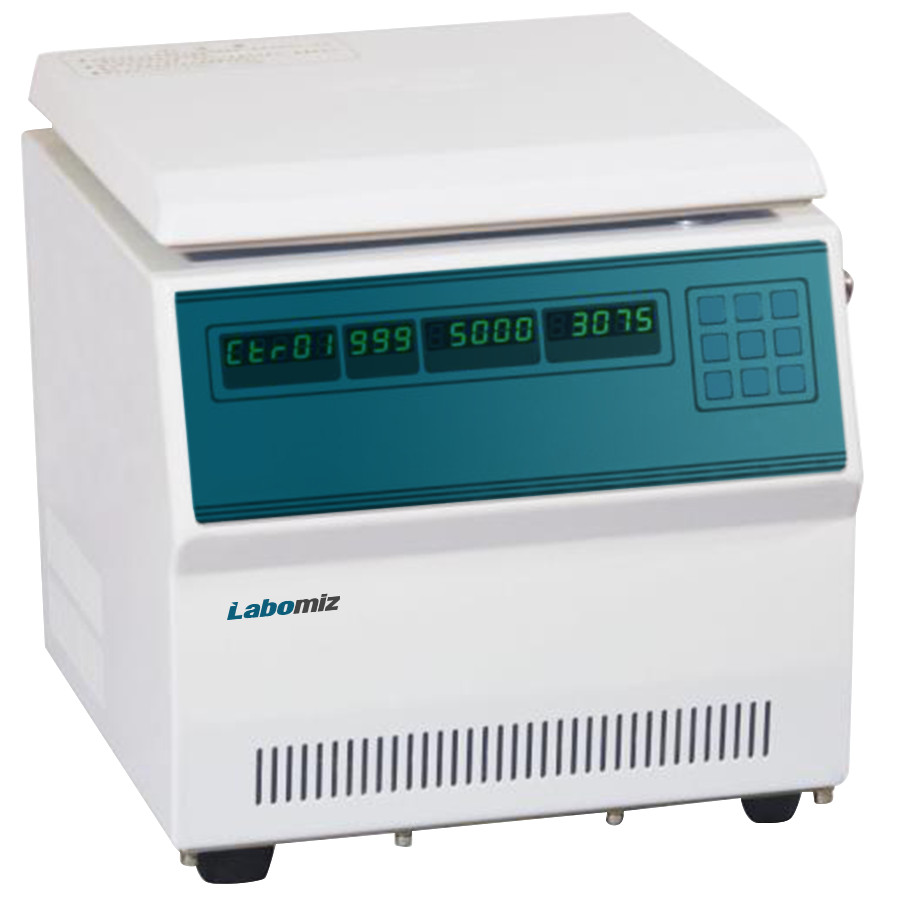

Low speed centrifuge MLSC-1F
Model: MLSC-1F · Category: Centrifuges
Low speed centrifuge MLSC-1F is a microcomputer controlled unit that is driven by brushless DC stepless speed regulation motor. Features a special key for centrifugal force through which the centrifugal force can be set or observed anytime during the process.
Specifications
| Max speed | 4200 rpm |
|---|---|
| Max RCF | 3155 x g |
| Rotor capacity | 4 x 12 x vacuum blood tube |
| Temperature raise | ≤ 10 °C |
| Speed accuracy | ± 20 rpm |
| Noise | ≤ 55 dB |
| Time range | 1 s ̴ 99 :99:59 |
| Power supply | AC 220 V 50 Hz |
| Power | 550 VA |
| Dimensions | 433 x 580 x 402 mm |
| Weight | 65 kg |
Features
| Microcomputer controlled system |
| Rotor is hot press formed of nylon composite material which can be matched with many conventional test tubes |
| Driven by brushless DC stepless speed regulating motor |
| Automatic stop on opening of the door to ensure operational safety |
| AC frequency conversion motor drive |
| Offers nine ascending and descending rate selection modes |
| Offers ten different kinds of custom work mode selection |
| Speed/ centrifugal force can be set and double synchronous display screen |
| Door with double lock rod design, magnetic locks and electric door |
| Up to 30 grams stress tolerance with no special load balancing |
Applications
| No. | Item |
|---|---|
| 1 | Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications |
Rotor Selection
| Sr No | Model | Max speed | Max RCF | Rotor capacity |
|---|---|---|---|---|
| 1 | Swing out rotor | 4200 | 3155 | 48 × Vacuum blood tube |
| 2 | 48 holes Cap remover | - | - | 48 holes Cap remover |
