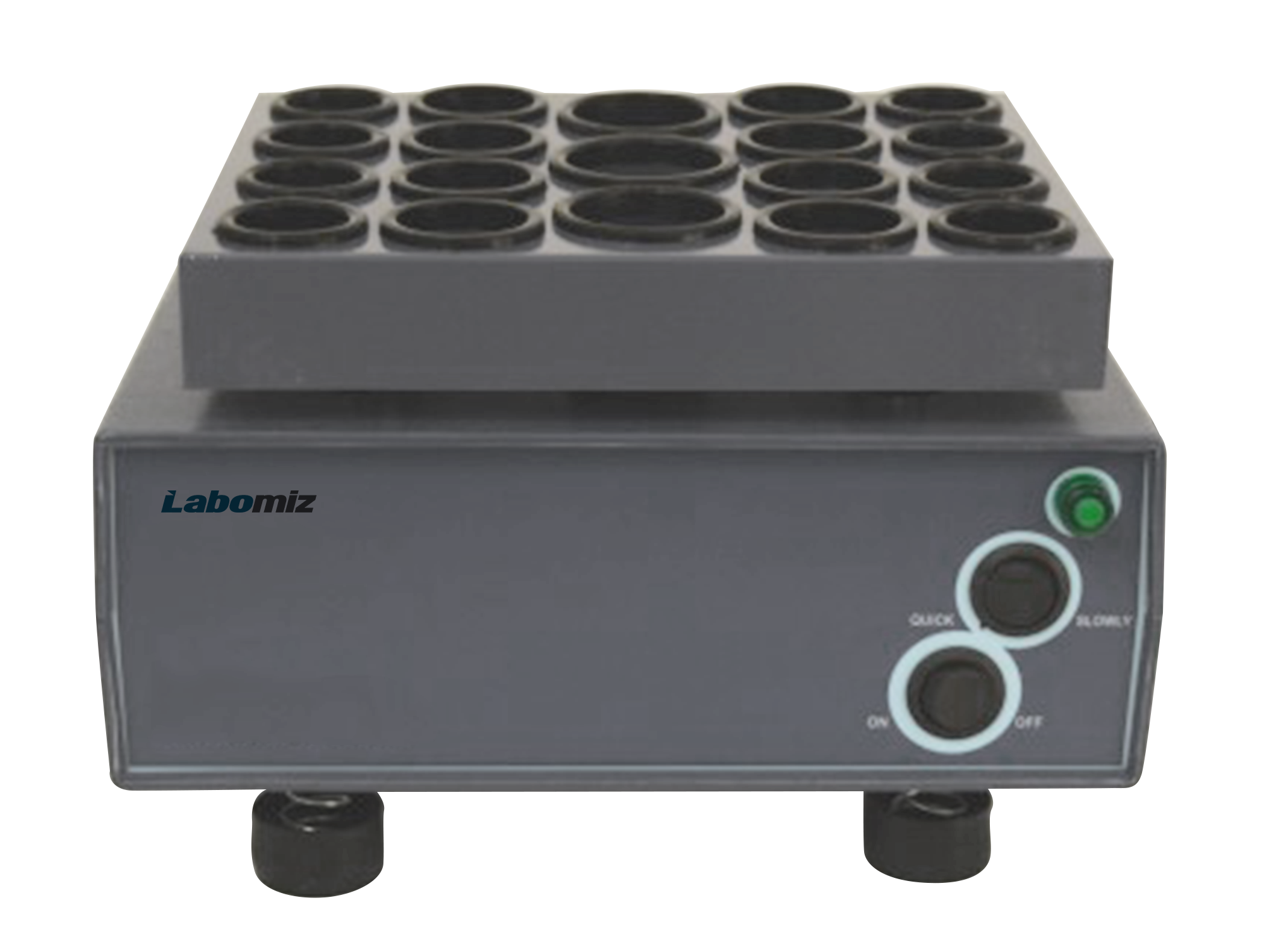

Powder Shaker MPWD-1A
Model: MPWD-1A · Category: Lab Shakers and 3 D Rockers
Powder shaker MPWD-1A is a tabletop microprocessor controlled unit. It features high performance and low noise AC motor, optimized for rapid and thorough mixing. Different types of well plates makes it suitable for various applications.
Specifications
| Motion | Circular |
|---|---|
| Orbit diameter | 3.4 mm/4 mm |
| Speed range | 1000 rpm/1200 rpm |
| Operation mode | Continuous |
| Standard plate | Height 30 mm Φ 37 O-ring : 1 well Φ 35 O-ring : 2 wells Φ 28 O-ring : 8 wells Φ 25 O-ring : 8 wells |
| Protective class | IP21 |
| Relative humidity | 0.8 |
| Voltage | AC 220 V ± 10 % (50 Hz/60 Hz) |
| Dimensions | 235 x 160 x 160 mm |
| Weight | 2.3 kg |
Features
| Noiseless operation |
| Continuous running mode |
| Compatible for different types of plates |
| Recommended bottles diameter: 1 mm ~ 3 mm less than the O-ring |
| Recommend bottles height: double of the working plate |
Applications
Used in food, medicine, metallurgy, chemical industry, cement, glass, grain, ceramics, paper industry, research and development and quality control, etc. for shaking powder particle size and granules.
