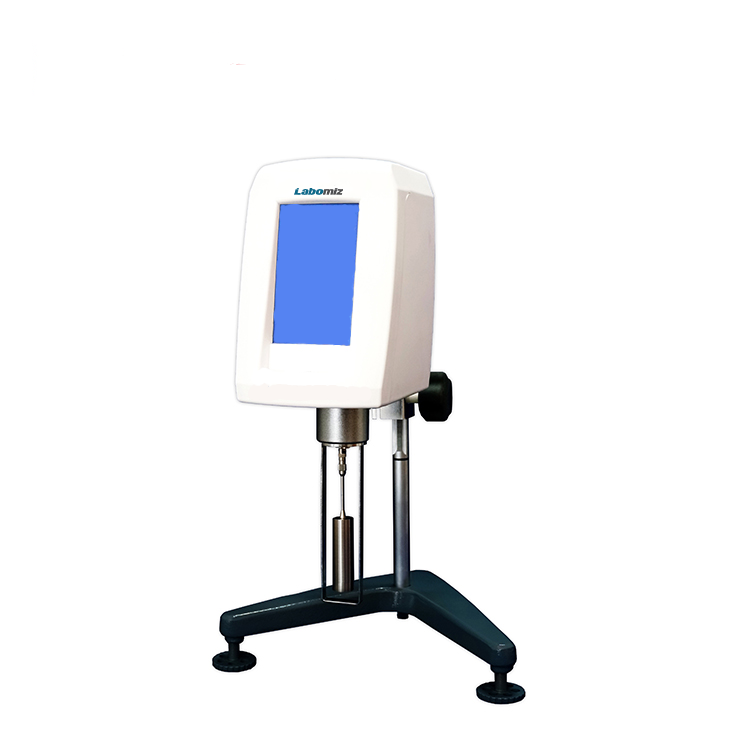

Touch screen viscometer MTSV-1B

Touch screen viscometer MTSV-1B is a bench-top unit with a touch panel for easy control of system parameters. Temperature probe interface for temperature measurement. Four rotors are available with the unit, for varying application. Control panel displays parameters such as Viscosity, temperature, dynamic viscosity, density, torque, shear rate and rotor speed.

Measurement range1 mPa.s ⁓ 2 × 106 mPa.s
Sample Consumption300 ml ⁓ 400 ml
Display5 inch color TFT
Measurement error≤ ± 1 % ( F.S )
Weight linearity± 0.5%
Power supply110 V ⁓ 220 V
60 Hz ⁓ 50 Hz
Data storage30 set data
Dimensions300 × 300 × 450 mm
Weight4 kg

Five inch color touch screen panel

Auto display of maximum measuring range

Different speed rotors are available

Density value used to display kinematic viscosity

Real time trend display for user interpretation

Automatic scan recommends rotor and speed

Provision to store data for future study

Used to measure viscosity of fluids, including paints, cosmetics, inks, paper, food, oil, starch, solvent-based adhesive, biochemical products and other industries.
