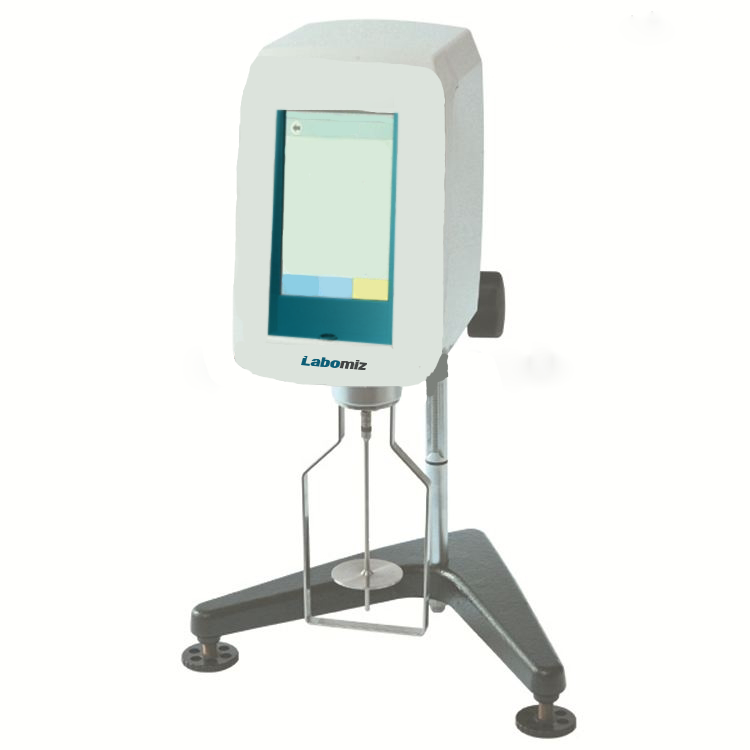

Touch screen viscometer MTSV-3C

Touch screen viscometer MTSV-3C is a bench-top unit with a touch panel for easy control of system parameters. Six rotors are available with the unit, for varying application. Control panel displays parameter such as Viscosity, temperature, dynamic viscosity, density, torque, shear rate and rotor speed. Real time trend display for user interpretation.

Measurement range200 mPa.s ⁓ 8000 mPa.s
Rotor speed0.1 rpm ⁓ 200 rpm step-less speed change
2000 rpm rotating speed steps
Sample Consumption500 ml
Rotors6 types ( R2, R3, R4, R5, R6, R7 )
Measurement error≤ ± 1 % ( F.S )
Weight linearity± 0.5%
Power supply110 V ⁓ 220 V
60 Hz ⁓ 50 Hz
Data storage30 set data
Dimensions300 × 300 × 450 mm
Weight4 kg

Aluminum alloy case ( Resistance to corrosion )

Five inch color touch screen panel

Auto display of maximum measuring range

Density value displays kinematic viscosity

Automatic scan recommends rotor and speed

Provision to store data for user interpretation

Triangular base and single column

Used to measure viscosity of fluids, including paints, cosmetics, inks, paper, food, oil, starch, solvent-based adhesive, biochemical products and other industries.
