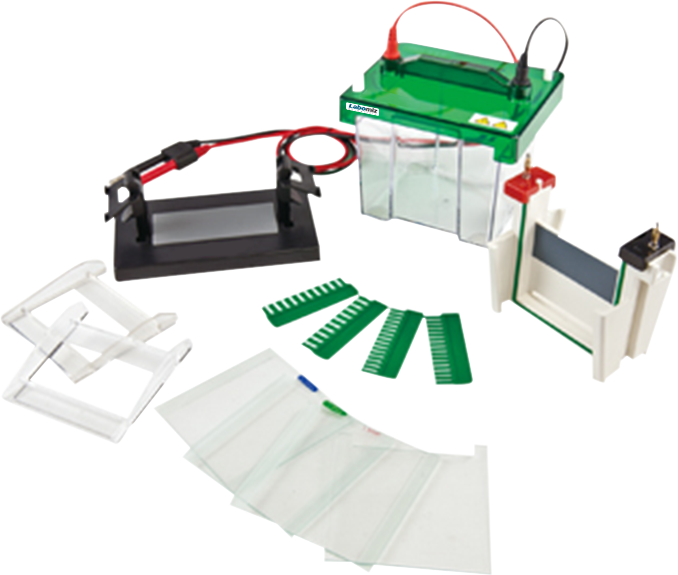

Vertical Electrophoresis Unit MVEU-2A
Model: MVEU-2A · Category: Electrophoresis
Vertical Electrophoresis Unit MVEU-2A is vertical unit with leak proof assembly for producing well defined bands. Large volume buffer ensures cooling effects and stable pH value during experimental process. Seals surrounding glass plates on both sides ensures fast set up time and leak proof operation.
Specifications
| Glass tray (W x L) | 82 x 88 mm |
|---|---|
| Gel tray (W x L ) | 100 x 100 mm |
| Comb thickness | 750 mL |
| Comb throughput | 11 to 30 |
| Amount of Gel | Gel casting |
| No of samples | 0.75 mm, 1.0 mm, 1.5 mm |
| Buffer volume | 1 ~ 2 piece |
| External size (L x W x H ) | 150 x 120 x 115 mm |
| Gross weight | 1.5 kg |
Features
| Fast set up time (15 minutes) |
| Leak free operation |
| Auto power off when lid is removed |
| Colored sample background (sample addition) |
Applications
Used in molecular biology, life science, research and diagnostic lab, education institutes for protein analysis, purification of nucleic acid, sample purification, preparation and analysis, etc.
Standard Accessories
| Sr No | Accessory name | Quantity |
|---|---|---|
| 1 | Body tank with electrode | 1 |
| 2 | Gel casting base | 1 |
| 3 | Notched glass plate | 4 |
| 4 | 0.75 mm bonded glass spacer | 2 |
| 5 | 1.0 mm bonded glass spacer | 2 |
| 6 | 1.5 mm bonded glass spacer | 2 |
| 7 | 0.75 mm thickness 11 wells comb | 2 |
| 8 | 1.0 mm thickness 15 wells comb | 2 |
| 9 | 1.5 mm thickness 15 wells comb | 2 |
| 10 | 0.75 mm thickness 15 wells comb | 2 |
| 11 | 1.0 mm thickness 15 wells comb | 2 |
| 12 | 1.5 mm thickness 15 wells comb | 2 |
| 13 | Gel Shovel | 1 |
| 14 | Clamp version | 2 |
| 15 | Dummy plate | 1 |
| 16 | Electrical cables | 1 |
