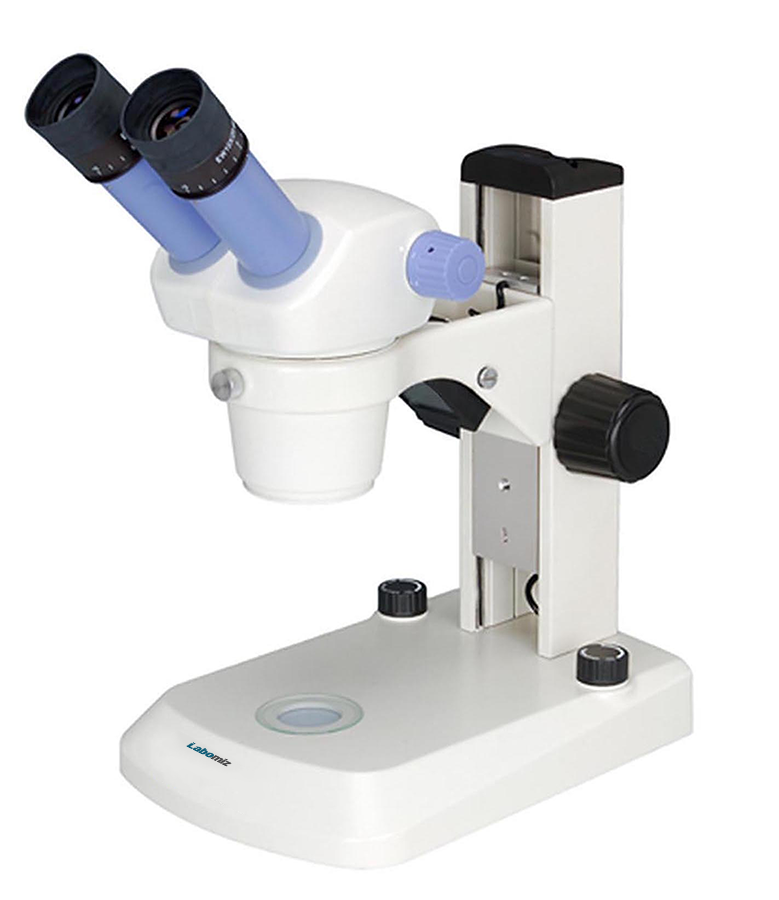

Zoom stereo microscope MZSM-1A
Zoom stereo microscope MZSM-1A is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives.
| Viewing head | Binocular |
| Zoom ratio | 1 : 4.5 |
| Eyepiece (Wide field eyepiece ) | WF 10X/ Φ20 mm |
| Inclination | 45° |
| Inter-pupillary distance | 55 mm ⁓ 75 mm |
| Viewing field diameter | 20 mm |
| Zoom objective | 1X ⁓ 4.5X |
| Working distance | 97 mm |
| Focusing range | 100 mm |
| Incident illumination | 100 V ⁓ 240 V |
| Transmitted illumination | 100 V ⁓ 240 V |
| Video attachment | 0.5X C-mount |
| Dimensions | 380 × 320 × 535 mm |
| Weight | 5.5 kg |
Wide viewing field and long working distance |
Displays sharp images |
Ergonomic design increases productivity |
Incident, transmitted LED illumination ( examine transparent sample ) |
Provision to connect the camera ( optional ) |
Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
