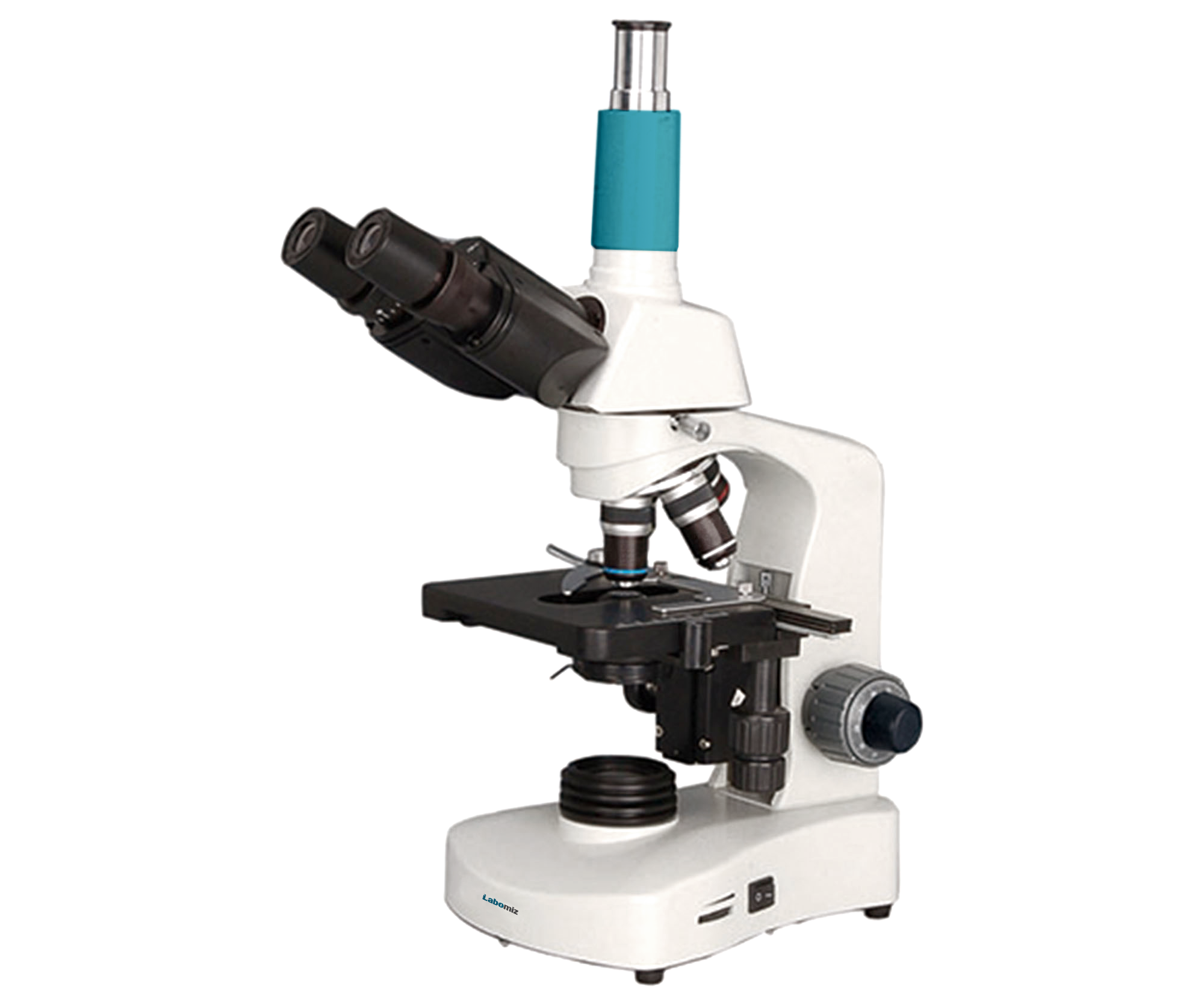

Biological Microscope MBIM-4C
Biological Microscope MBIM-4C is a compact tabletop microscope for superior specimen analysis. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
| Viewing head | Seidentopf Trinocular |
| Viewing head inclination | Inclined at 30°, 360° rotatable |
| Interpupillary distance | 55 mm ~ 75 mm |
| Eyepiece | WF10X/18 mm |
| Objective | Achromatic objective 4X, 10X, 40X, 100X (Oil) |
| Nosepiece | Backward Quadruple |
| Stage | Double layer mechanical stage 132 mm x 142 mm/ 75 mm x 40 mm |
| Focusing | Coaxial coarse and fine adjustment Fine division 0.004 mm Coarse stroke 37.7 mm/rotation Fine stroke 0.4 mm/rotation Moving range: 24 mm |
| Condenser | Abbe NA 1.20 with Iris diaphram and filter |
| Illumination | 1W S-LED illumination, brightness adjustable |
| Dimension | 395 x 265 x 500 mm |
| Weight | 7 kg |
High contrast Achromatic objective |
Backward nosepiece for greater access to slides |
Durable mechanical stage supports slides |
Optional rechargeable battery for outdoor operation |
Spare part : 5 ml Immersion oil |
Used in clinics, hospitals, schools, education institutes, academic labs and research to observe cell, tissues and other specimens.
