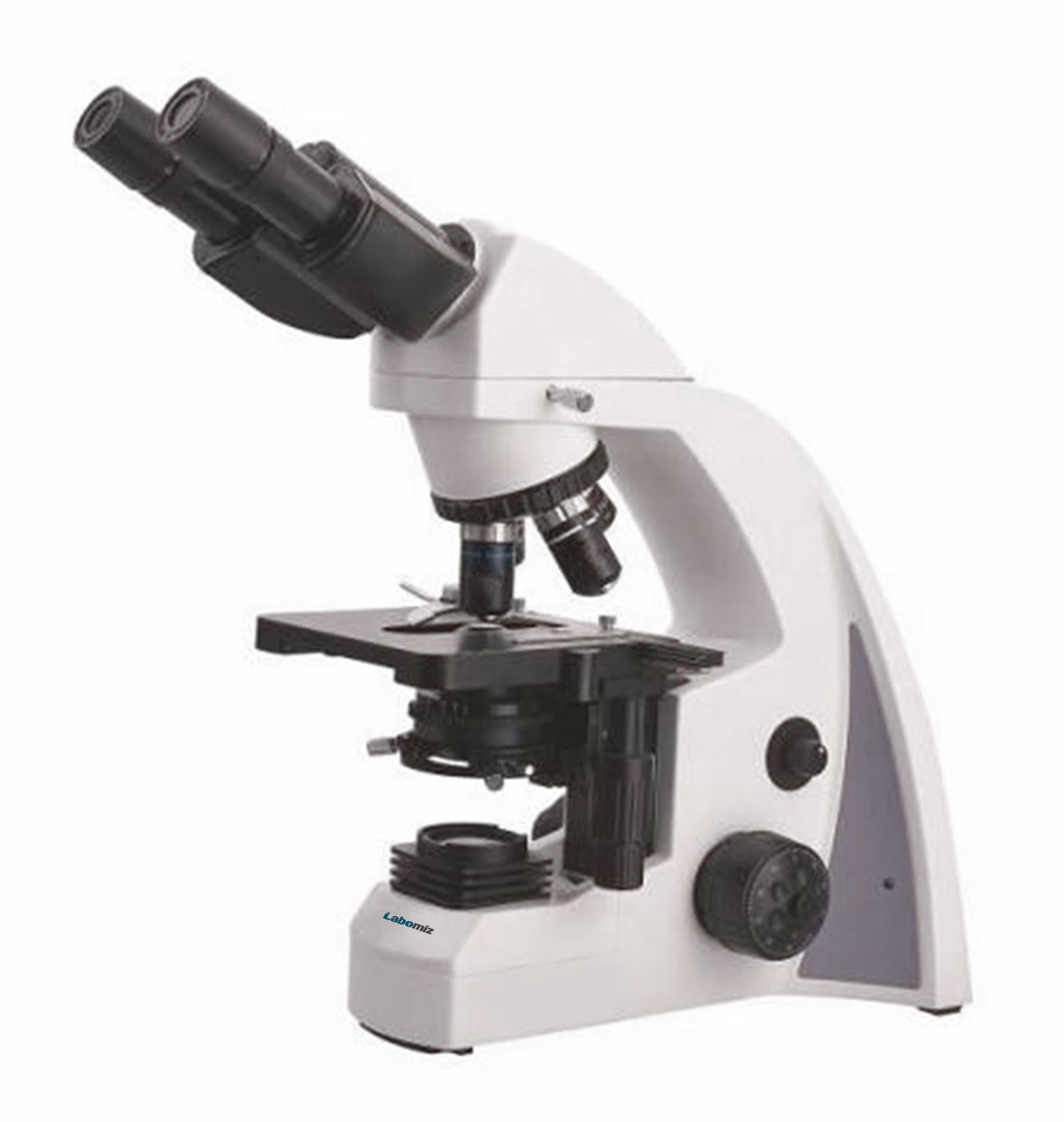

Biological Microscope MBIM-7A
Biological microscope MBIM-7A is an instrument that provides sharp and bright image for specimen analysis and observation. Easy-carrying handle enables users to remain comfortable during long hour observations. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
| Optical system | Infinite optical system |
| Viewing head | Seidentopf Binocular |
| Viewing head inclination | 30° inclined |
| Interpupillary distance | 48 mm ~ 75 mm |
| Eyepiece | WF 10X/18 mm |
| Objective | Infinite semi-plan achromatic objectives 4X, 10X, 40X, 100X |
| Nosepiece | Backward Quadruple |
| Stage | Double layer mechanical stage 140 mm x 140 mm/75 mm x 50 mm |
| Focusing | Coaxial coarse and fine adjustment Fine division 0.002 mm Coarse stroke 37.7 mm/rotation Fine stroke 0.2 mm/rotation Moving range 20 mm |
| Condenser | Sliding-in centre condenser NA1.25 |
| Illumination | 1W S-LED lamp, brightness adjustable |
| Dimension | 350 x 355 x 555 mm |
| Weight | 12 kg |
Large viewing area with wide field eyepiece |
Sliding-in centre condenser for replacement of phase contrast and dark field condenser |
Backward nosepiece for crisp and clear image |
Double layers mechanical stage for comfortable specimen operation |
High contrast Infinite semi-plan achromatic objectives |
Used in biology, pathology, histology, pharmacology, genetics, hospitals, academic institutes, research centre, etc. to observe cell, tissues and other specimens.
