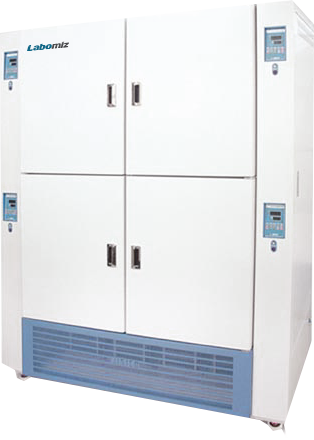

Multi-Chamber Incubator MCI-2A
Multi-Chamber Incubator MCI-2A is equipped with forced convection system for a uniform temperature distribution, heat exchange and gentle air flow in chamber. Separate microprocessor PID auto-tuning controller controls four chambers individually and variables like temperature, speed and flow. Safety tempered glass inner door prevents heat loss and provide clear sample visualization. Safety devices include ELB ( elastic load balancing ) and self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.
| Capacity | 920 L ( 230 L × 4 chambers ) |
| Chamber | 4 |
| Shelves ( Each chamber ) | 3 |
| Total shelves ( 4 chambers ) | 12 |
| Environmental temperature range | 5 °C ~ 30 °C |
| Ambient temperature range | 0 °C ~ 60 °C |
| Temperature accuracy | ± 0.5 °C to ±1.0 °C |
| Thermocouple | Pt 100 Ω |
| Heater power | 1400 W ( 340 W × 4 chambers ) |
| Fan motor | 20 W |
| Refrigerator compressor | 1/4 hp |
| Power ( 1 phase ) | AC 220 V 50 Hz /60 Hz |
| Chamber dimensions ( W × D × H ) | 600 × 620 × 615 mm × 4 chambers |
| Exterior dimensions ( W × D × H ) | 1350 × 790 × 1918 mm |
| Net weight | 250 kg |
Double-door system |
Solid-state relay (SSR) type temperature regulator (an electronic switching device) |
Each chamber operates at different conditions |
Magnetic closure with positive sealing gasket (outer door) |
Ni-Cr heating element |
Digital display for parameters view and control |
Stainless steel shelves (interior material) |
Steel plate with powder coated finish (exterior material) |
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
