Double Beam Spectrophotometer MDBS-1B | Labomiz

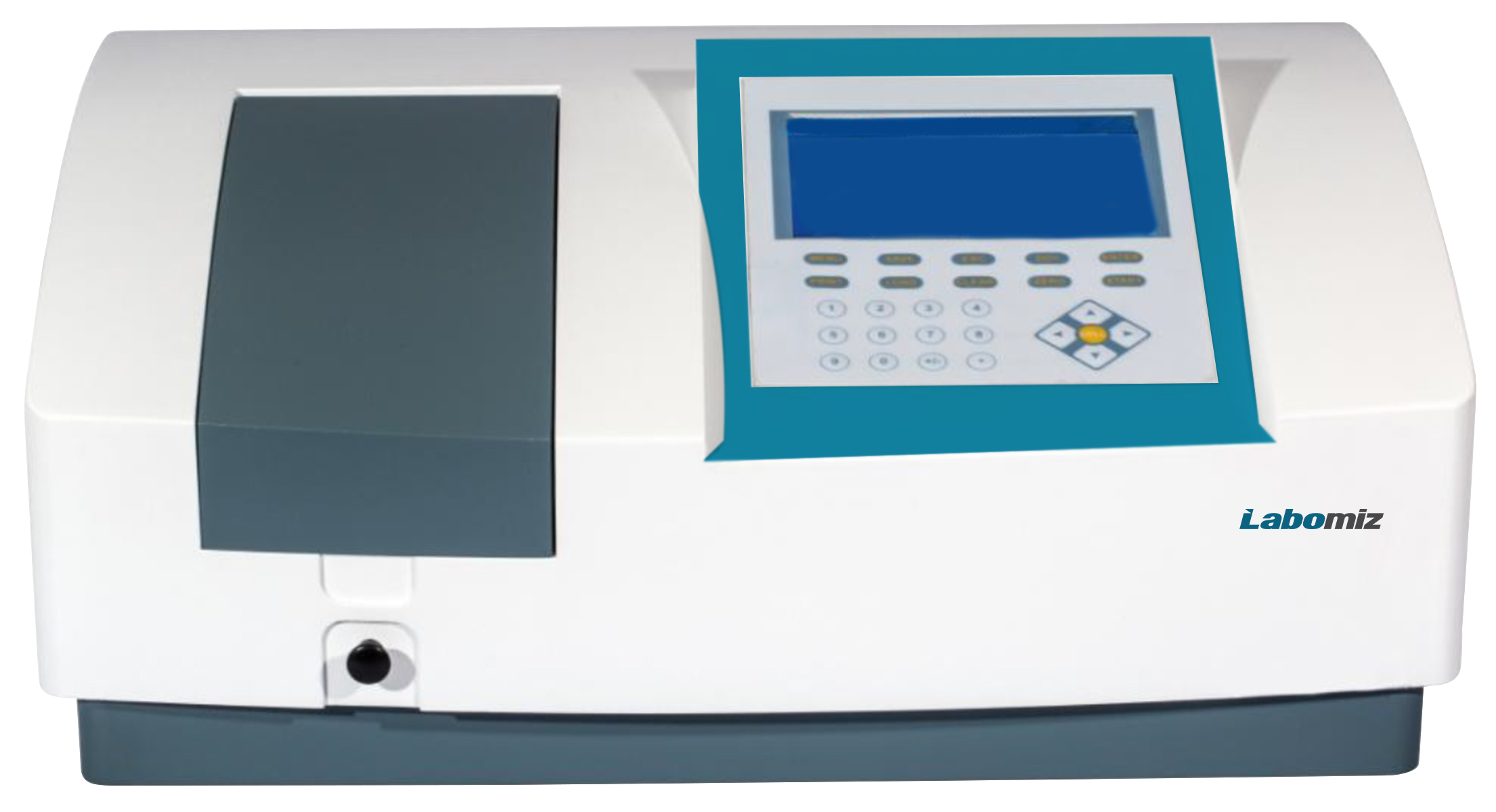

Double Beam Spectrophotometer MDBS-1B

Double Beam Spectrophotometer MDBS-1B is a double beam light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. Tungsten and deuterium lamp as a light source with automatic wavelength calibration enables stable output. High performance 24-bit A/D convertor with latest ARM11 system ensures high sample processing speed. Integrated with USB and RS-232 interface enables transfer and storage of output data.

Optical system	Double beam
Wavelength range	190 nm ~ 1100 nm
Spectral bandwidth	1 nm
Wavelength accuracy	± 0.1 nm
Wavelength repeatability	0.1 nm
Wavelength setting	Auto
Display	7 inch color screen LCD
Detector	Silicon photodiode
Stray light	0.03 % T
Photometric accuracy	± 0.002 A, ± 0.004 A, ± 0.2 % T
Photometric repeatability	± 0.001 A , ± 0.002 A, ± 0.2 % T
Photometric range	-0.4 to 4.0 A
Baseline flatness	± 0.0015 Abs
Light source	Tungsten and Deuterium
Power	AC 110 V,50 Hz AC 220 V,60 Hz
Weight	18 kg

Large color LCD screen display curve and data

32-bit microcontroller for photoelectric data collection and processing

Function: photometric and quantitative measurement, spectral scanning, dynamic testing, DNA/protein testing, multi-wavelength testing and data printing

Diffraction grating 1200 L/mm ensures precise spectral results

Screw drew mechanism ensures wavelength accuracy and repeatability

Output - USB export,RS-232 interface

Large sample chamber-upto 100 mm cuvette

Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.

MDBS-1B
