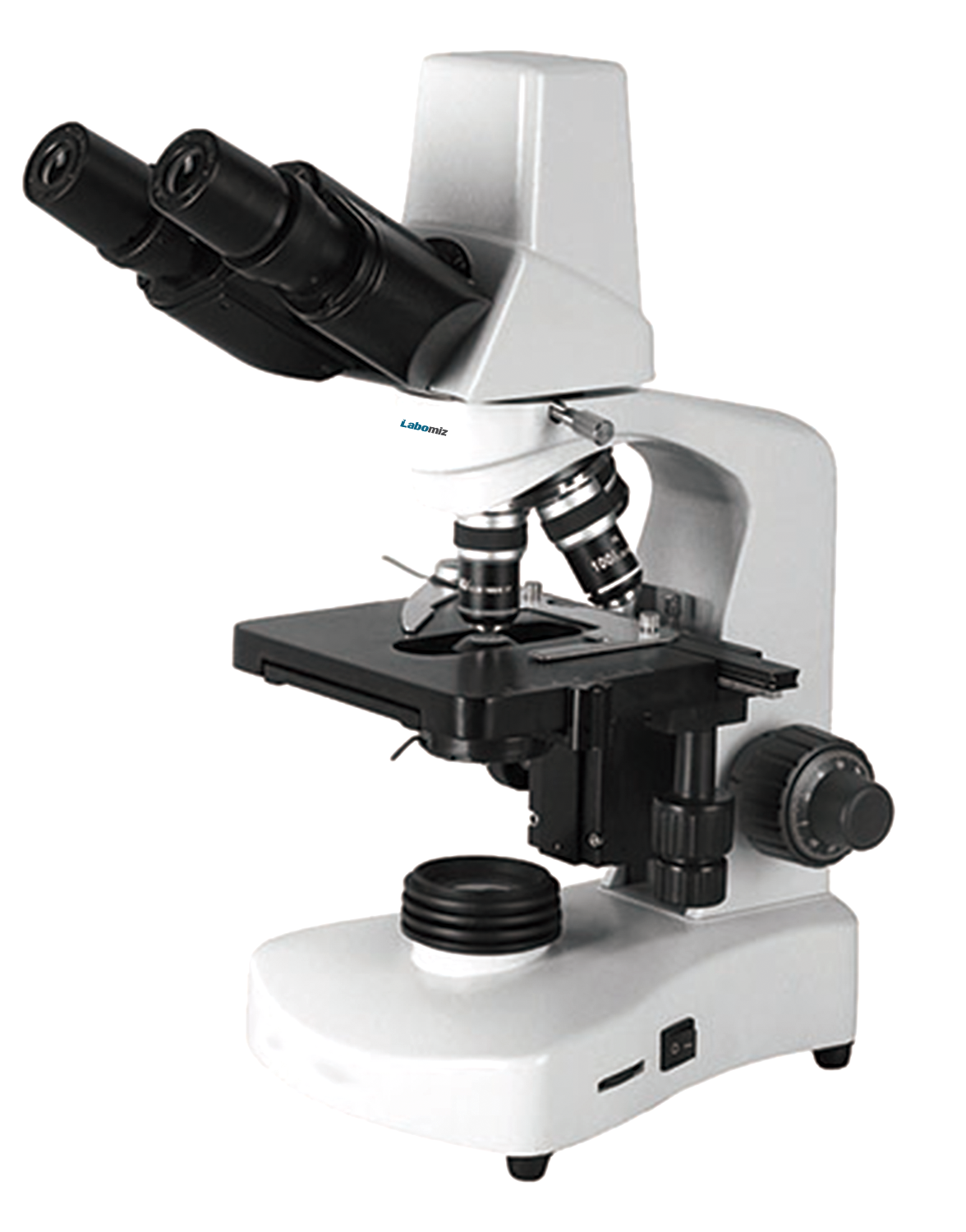

Digital microscope MDM-2B

Digital microscope MDM-2B is a compact bench-top unit with inbuilt digital camera to capture vivid images and real time videos. LED illumination with rheostat brightness control aids to achieve high quality images. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Condenser Abbe NA1.20 with Iris diaphragm.

Viewing head	Seidentopf binocular
Eyepiece Wide field eyepiece	WF10X / 18 mm
Camera system	1.3 MP
Achromatic objective	4X 10X 40X 100X
Range of viewing field	0.9
Software	ScopeImage 9.0
Viewing head inclination	30°
Viewing head rotation	360°
Output	48 mm ⁓ 75 mm
Stage	USB2.0
Moving range stage	132 mm × 142 mm 75 mm × 40 mm
Coarse stroke	0.004 mm
Fine stroke	32.7 mm
Focus moving range	0.4 mm
Condenser	24 mm
Illumination	Abbe NA1.20
Dimensions	1 W S-LED
Weight	400 × 270 × 500 mm

Inbuilt CMOS camera ( 1.3 MP )

Software support ( Image analysis )

Connectable to computer using USB cable

Backward quadruple nosepieces

Viewing head with 10X widefield eyepieces

Double layered mechanical stage

Used for school biological education and medical analysis area. Used widely in clinics, hospitals, schools, academic labs and scientific research department.

MDM-2B

Accessory No.	Accessory	Accessory specification
1	Eyepiece	P16X / 11 mm
2	Objective	Achromatic objective 20X
3	Objective	Achromatic objective 60X
4	Phase contrast kit	Simple phase contrast kit
5	Phase contrast kit	Sliding phase contrast kit
6	Phase contrast kit	Turret phase contrast kit
7	Dark field attachment	Dark field attachment ( dry )
8	Dark field attachment	Dark field attachment ( oil )
9	Polarization attachment	Polarization attachment
10	Power supply	Rechargeable battery
11	Photo attachment	Nikon ( Connect to Nikon digital single lens reflex )
12	Photo attachment	Canon ( Connect to Canon digital single lens reflex )
13	Video attachment	0.5X microscope adapter
14	Video attachment	C-mount, 1X magnification
