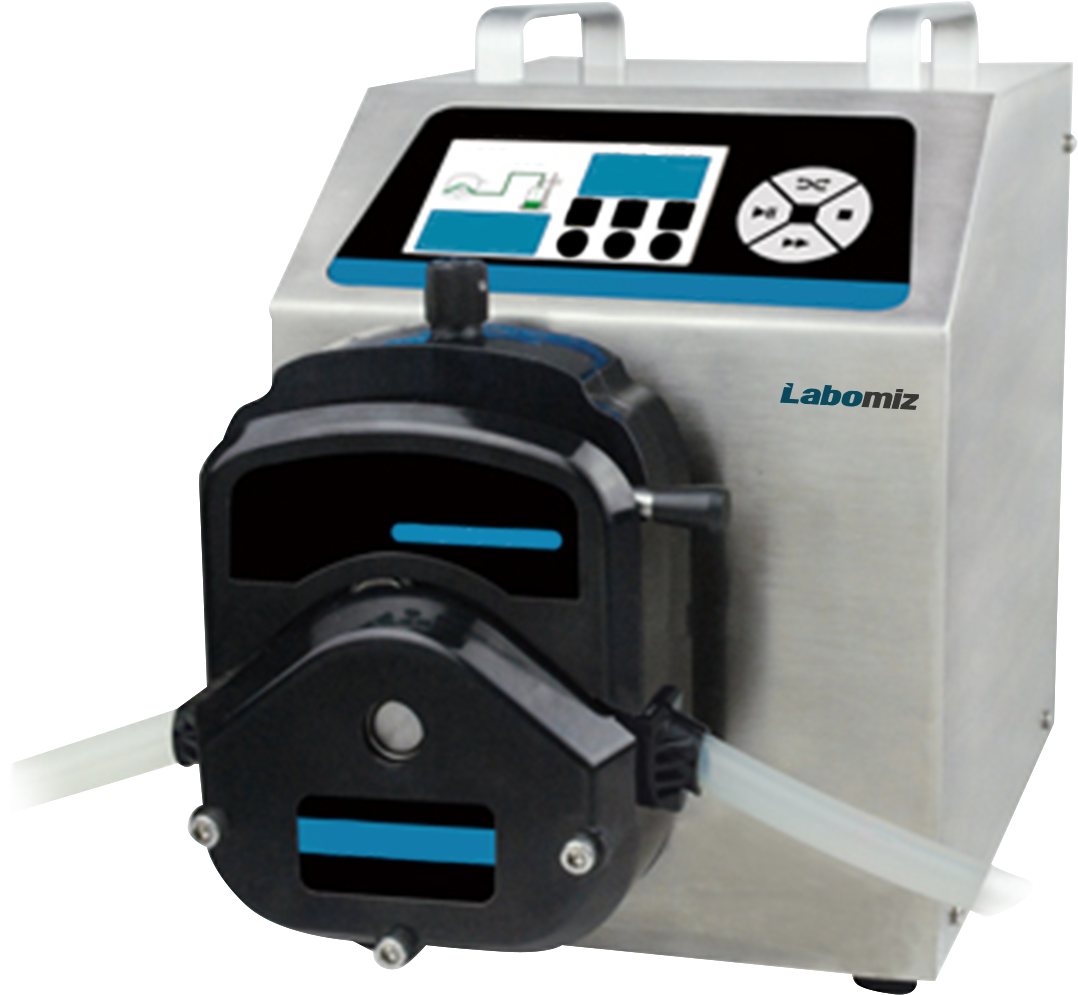

Dispensing Peristaltic Pump MDPP-1F
Dispensing Peristaltic Pump MDPP-1F is a positive displacement pump with mechanical keypad for controlling direction and speed. Specially designed pump heads pump out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing, metering and general transfer of fluids.
| Flow rate range | 6.9 mL / min ~ 12000 mL / min |
| Speed range | 1 rpm ~ 600 rpm |
| Dispensing volume range | 0.01 mL ~ 9999.99 mL |
| Number of channels | 2 |
| Number of rollers | 3 |
| Dispensing time | 0.1 sec ~ 9999.99 sec |
| Speed resolution | 0.01 rpm |
| Dispensing volume resolution | 0.01 mL |
| Pause time | 0.1 sec ~ 9999.99 sec |
| Time resolution | 0.01 sec |
| Dispensing accuracy | < ± 0.5 % |
| Back suction angle | 0° ~ 360° |
| IP grade | IP31 |
| Outlet Pressure | 0.3 Mpa |
| Standard Power supply | 220 V ± 10 % 50 Hz 220 V ± 10 % 60 Hz |
| Optional Power supply | 110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz |
| Power consumption | < 300 W |
| Temperature | 0 °C ~ 40 °C |
| Relative humidity | < 80 % |
| Dimension ( L × W × H ) | 302 mm × 222 mm × 275 mm |
| Weight | 13.14 kg |
Stainless steel construction |
4.3’’ LCD touch screen displays current motor speed, direction and working state |
Embedded handle for comfortable grip and convenience |
Ability to preset dispensing volume and time, pause time, copy numbers and back suction angle |
Mechanical keypad for controlling direction and speed |
Equipped with Servo motor drive |
Used in pharmaceuticals, waste water treatments, cosmetic industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
