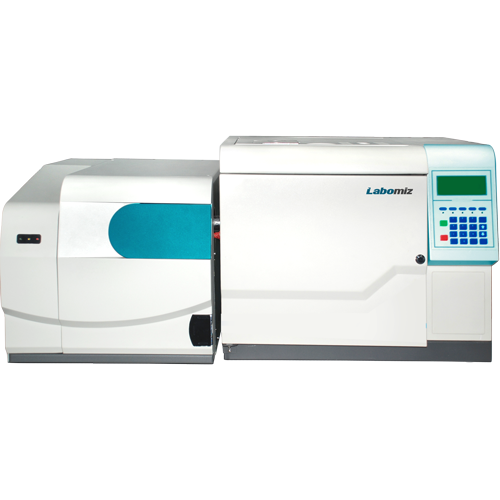

Gas chromatography mass spectrometry MGCMS-1A

Gas chromatography mass spectrometry MGCMS-1A is a high precision Gas chromatograph mass spectrometer. It is equipped with a electron multiplier to ensure high sensitivity together with a pre-filter mass analyzer. Desorption for solids is performed at controlled temperature between a range of 100 °C ~ 350 °C with a flow rate of 1 to 1.5 ml / min. With seven stage temperature programming and an interface temperature of 450 °C the analysis is extremely sensitive and super specific.

Gas Chromatography Specifications

Model No	GCMZ-A1
Flow rate	1 ~ 1.5 ml / min
Maximum flow rate	10 ml / min
Inlet temperature
Pressure range	0 ~ 100 psi
Heating rate
Room temperature
Pressure control mode	Electronic pressure control ( Supports CV and CC )
Split mode	Split / split less
Split ratio	16:01:00
Temperature programming	7 stages / 8 platforms
Auto sampler	Optional

Mass Spectrometry Specifications

Model No	MSMZ-1A
Mass range	1.5 ~ 1000 amu
Ion – source temperature	100 degree Celcius ~ 350 degree Celcius
GC-MS interface temperature	450 degree Celcius
Scan rate	Upto 10000 amu/s
Stability	0.10 amu / 48 hrs.
Filament emission current	0 ~ 350 micro Ampere
EI source ionization energy	5 eV ~ 250 eV
Resolution	Unit resolution
Detector	High energy dynode electron multiplier
Sensitivity	Full scan ( S / N is ≥ 30 : 1 )
Vacuum	Turbo molecular pump ( 67 L/s )

Column flow rate is 1 ~ 1.5 ml / min

Maximum flow rate is 10 ml / min

Simultaneous analysis with different components increasing productivity

Electronic flow control system

Mass analyzer with pre-filter reducing quadruple filtration

Turbo molecular pump vacuum system for stability and reliability

Software controlled auto sampler , gas chromatograph and mass spectrometer

Screens and quantifies more than 1000 compounds in a single run

Used in identifying and quantifying volatile organic compounds in mixtures, testing residual solvents, identification of trace impurities in liquids or gases, evaluating extracts from plastics, contaminants on semiconductor wafers or other technology products
