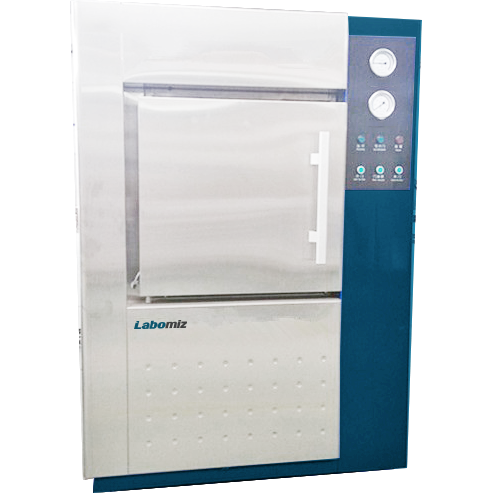

Horizontal Laboratory Autoclave MHA-3C
Horizontal Laboratory Autoclave MHA-3C is a 600 L capacited double door microprocessor controlled automatic autoclave. It is equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current this autoclave is an ideal laboratory device.
| Capacity | 600 L |
| Sterilization Temperature | 139 °C |
| Sterilization Pressure | 0.25MPa |
| Steam Pressure & Consumption | 0.4 - 0.6 MPa / 30 kg |
| Water Source Pressure & Consumption | 0.2 to 0.3 MPa / 200 kgs |
| Compressed Air Pressure | 0.6 - 0.8 MPa |
| Inner Chamber Dimension ( L × W × H ) | 1200 × 610 × 910 mm |
| Outer Dimension ( L × W × H ) | 1500 × 1350 × 1950 mm |
| Power Supply | 36 kW |
| Net Weight | 1100 kg |
Digital LCD display to monitor working status and parameters |
Working pressure : 0.22 MPa |
Working temperature : 139 ? |
Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa |
Safe door lock system ensuring safety / protection during sterilization |
Automatic power cut off with alarm with low water levels indication |
Motorized or sliding door with pneumatic sealing to prevent loss of sterile steam |
Suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding.
