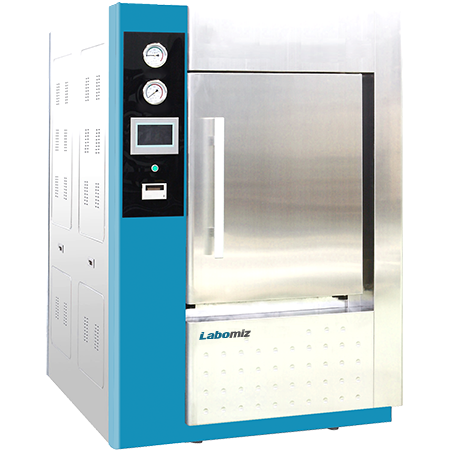

Horizontal Laboratory Autoclave MHA-5F
Horizontal Laboratory Autoclave MHA-5F is a 1500 L capacited pulse vacuum single door autoclave. With a maximum working temperature of 134 °C it effectively sterilizes media, liquids and waste to be discarded. High quality insulation and air sealed structure makes it efficient for large scale sterilization. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.
| Capacity | 1500 L |
| Sterilization Temperature | 139 °C |
| Sterilization Pressure | 0.25MPa |
| Steam Pressure & Consumption | 0.4 - 0.6 MPa / 55 kg |
| Water Source Pressure & Consumption | 0.2 to 0.3 MPa / 350 kgs |
| Compressed Air Pressure | 0.6 - 0.8 MPa |
| Inner Chamber Dimension ( L × W × H ) | 1900 × 680 × 1180 mm |
| Outer Dimension ( L × W × H ) | 2190 × 1450 × 1950 mm |
| Net Weight | 2000 kg |
Digital LCD display to monitor working status and parameters |
Working pressure : 0.22 MPa |
Working temperature : 134 ? |
Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa |
Self-inflating leak proof chamber |
Safe door lock system ensuring safety / protection during sterilization |
Automatic power cut off with alarm with low water levels indication |
Controlled power with built in steam generator |
Suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding.
