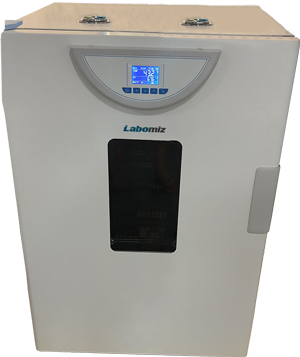

Drying Oven MHDO-1E
Drying oven MHDO-1E is multi-segments Programmable controller with 400 L chamber capacity. Superior temperature uniformity controlled by PID microprocessor. It provides fast ramping rate and stability during operation. It operational temperature range is RT+10 to 250℃, and designed with large LCD screen to display more data at same time. Equipped with stainless steel chamber, outer shell of steel with plastic coating and dual layer toughened glass observation window. It is suitable for industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction, wax-melting and sterilization.
| Chamber Volume | 400 L |
| Temperature Range | RT+10 to 250℃ |
| Display Resolution | 0.1℃ |
| Temperature Stability | ±1℃ |
| Temperature Uniformity | ±2.5% |
| Display | LCD display |
| Shelves | 3 pcs |
| Timing Range | 0 to 5999 min |
| Internal dimension (W×D×H) | 1000 × 510 × 800 mm |
| External dimension (W×D×H) | 1140 × 850 × 1080 mm |
| Power consumption | 3000 W |
| Power supply | 220 V, 50 Hz |
| Net Weight | 190 kg |
| Gross Weight | 238 kg |
Designed with PID controller system |
Material used polished stainless-steel chamber |
Equipped with 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature |
Auto-controller of fan speed to prevent damage to the samples |
Designed with large LCD screen to display more data at same time |
Self-check function easy to identify problems |
Offers programmable controller 7 periods 63 steps, 0 to 5999 min for each periods, fan speed 0 to 100% adjustable |
Dual layer glass door, large viewing window |
Independent audible and visible temperature-limiting alarm system ensures experiments run safely |
Over temperature and temperature difference alarms |
Semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable |
Drying Oven is used for glassware desiccation, laboratorial sample, food, chemical materials heat denaturalization, heat induration, moisture elimination, biomedical and other instruments sterilization; electronic components torrefaction and aging.
