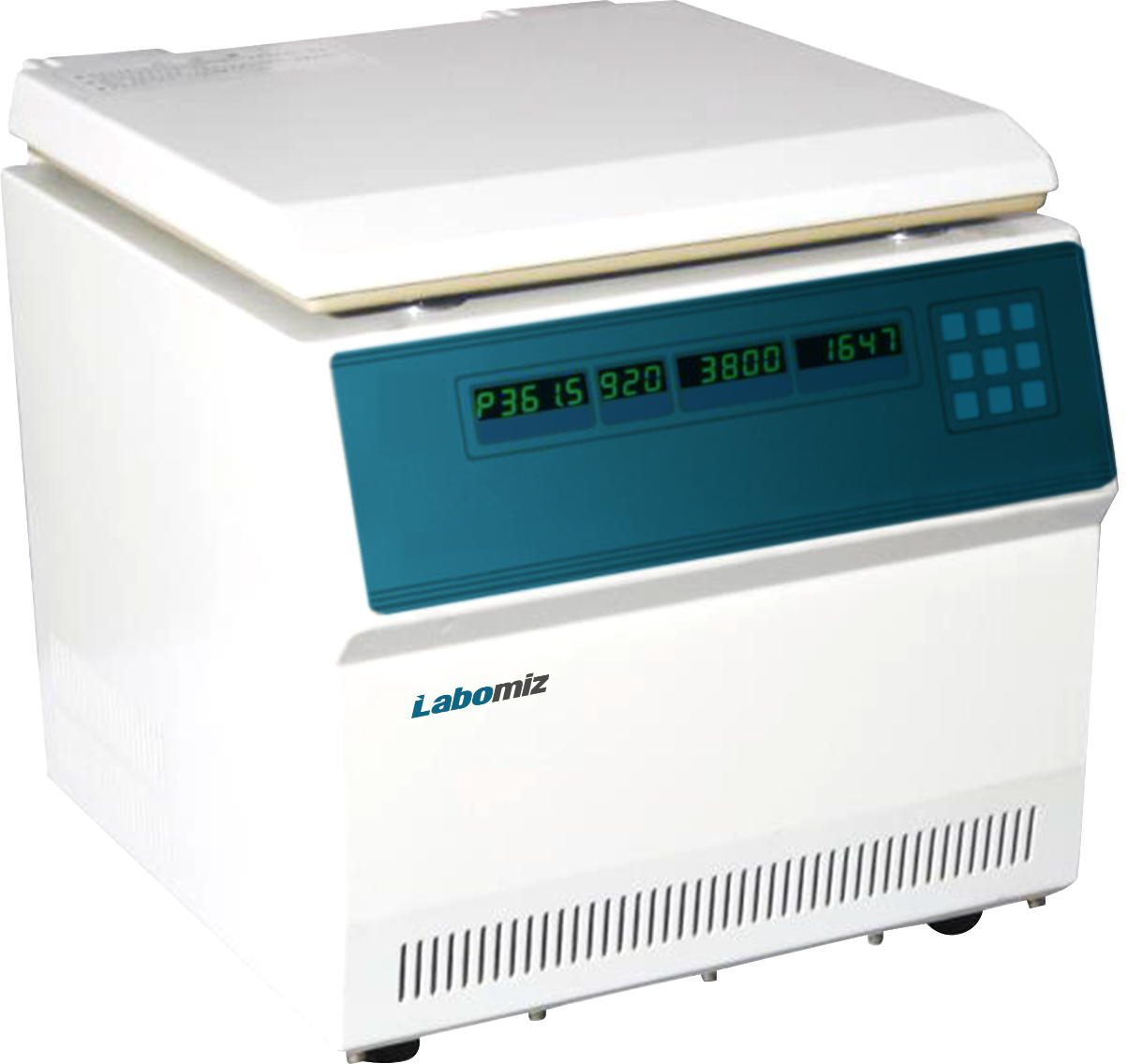

High speed centrifuge MHSC-2B

High speed centrifuge MHSC-2B is a microcomputer controlled unit that performs a wide range of separation, offering comprehensive control and set-up options to meet your precise application needs. Electric door locks that provide more safety. The centrifugation parameters can be changed during the process without stopping the machine. It features a unique design for air exhaust temperature and have a double synchronous display screen.

Max speed	21000 rpm
Max RCF	23194 x g
Speed accuracy	± 100 rpm
Noise	≤ 55 dB
Time range (hh:mm:ss)	1 min ̴ 99 : 99 : 59
Temperature indicators	≤ 8 ° C
Power supply	AC 220 V , 50 Hz
Power	550 VA
Dimensions	373 x 510 x 405 mm
Weight	50 kg

Microcomputer controlled system with LCD screen

Nine ascending and descending rate selection mode

Ten working mode options

Two optional timing mode that are easy to switch

Electric door with double lock rod design and magnetic locks

Parameters can be modified anytime during the process without stopping the machine

Unique design for air exhaust temperature and low noise

Alarm alerts prevent security hidden danger

Used to acquire rapid precipitation of the sample, extract serum from blood, microcell separation, microbiological sample treatment, PCR experimental zone centrifugation.

MHSC-2B

Rotor Model	Max speed (rpm)	Max RCF	Rotor capacity
Angle rotor 01	21000	22182 x g	12 x 0.5 ml
Angle rotor 02	18000	23198 x g	12 x 1.5 ml/ 2.2 ml
Angle rotor 03	16000	20049 x g	24 x 1.5 ml/ 2.2 ml
Angle rotor 04	16000	17459 x g	12 x 5 ml
Angle rotor 05	14000	18188 x g	12 x 10 ml
Angle rotor 06	16000	21504 x g	48 x 0.5 ml
Angle rotor 07	16000	23194 x g	36 x 1.5 ml / 2.2 ml
Angle rotor 08	12000	14170 x g	8 x 15 ml
Angle rotor 09	12000	14570 x g	4 x 100 ml
Angle rotor 10	12000	16099 x g	6 x 50 ml
Angle rotor 11	10000	10170 x g	6 x 100 ml
Swing-out rotor 01	5000	3775 x g	4 x 50 ml
Swing-out rotor 02	6000	5582 x g	8 x 15 ml
