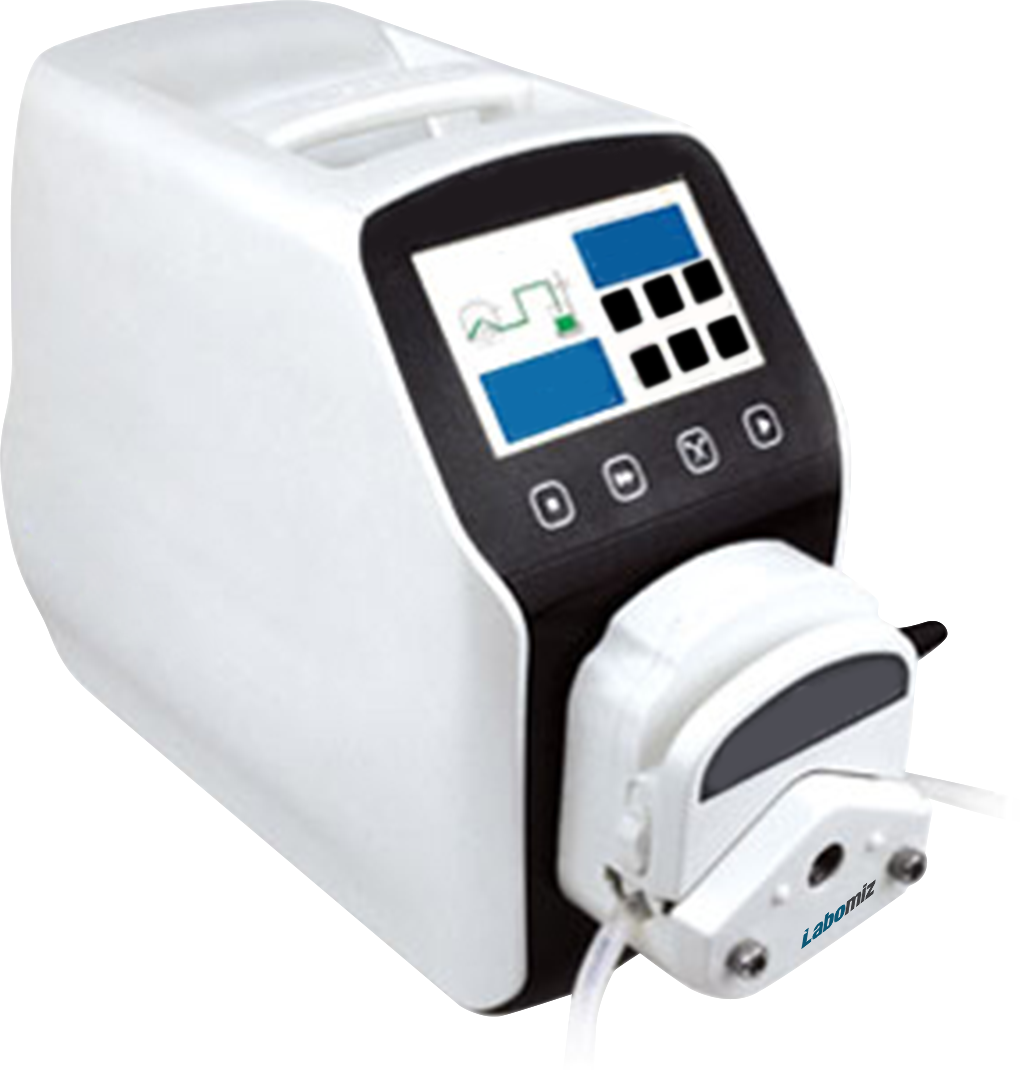

Intelligent Flow Peristaltic Pump MIFP-1B
Intelligent Flow Peristaltic Pump MIFP-1B is a positive displacement pump with mechanical keypad for controlling direction and speed. Equipped with intelligent calibration it pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing a fixed volume of liquid in a fixed amount of time.
| Flow rate range | 0.000166 ml / min ~ 1330 ml / min |
| Number of channels | 4 |
| Speed range | 0.1 rpm ~ 350 rpm |
| Speed resolution | 0.01 rpm |
| Number of rollers | 3 |
| Flow rate resolution | 0.01 µL |
| Flow rate accuracy | < ± 0.5 % |
| Back suction angle | 0°~ 360° |
| Outlet pressure ( 0.86 mm ~ 1.0 mm wall thickness tubing ) | 0.1 Mpa |
| Outflow pressure ( 1.6 mm ~ 2.4 mm wall thickness tubing ) | 0.1 MPa ~ 0.27 MPa |
| Standard Power supply | 220 V ± 10 % 50 Hz 220 V ± 10 % 60 Hz |
| Optional Power supply | 110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz |
| Power consumption | < 500 W |
| Temperature | 0 °C ~ 40 °C |
| Relative humidity | < 80 % |
| Dimension ( L × W × H ) | 261.4 mm × 157.3 mm × 236.9 mm |
| Weight | 4.40 kg |
ABS plastic shell and UV coated structure for anti-corrosive and anti-static properties |
Streamlined body design |
4.3’’ LCD touch screen displays current motor speed, direction and working state |
Embedded handle for comfortable grip and convenience |
Built in touch pen |
Flow rate data, settings and system configuration display all on same screen |
Equipped with Pump head, internal wrench, external control protection cover |
Mechanical keypad for controlling direction and speed |
Equipped with Stepper motor drive |
Dust and moisture proof, anti-static and anti-corrosive circuit board |
Equipped with Servo motor drive |
Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
