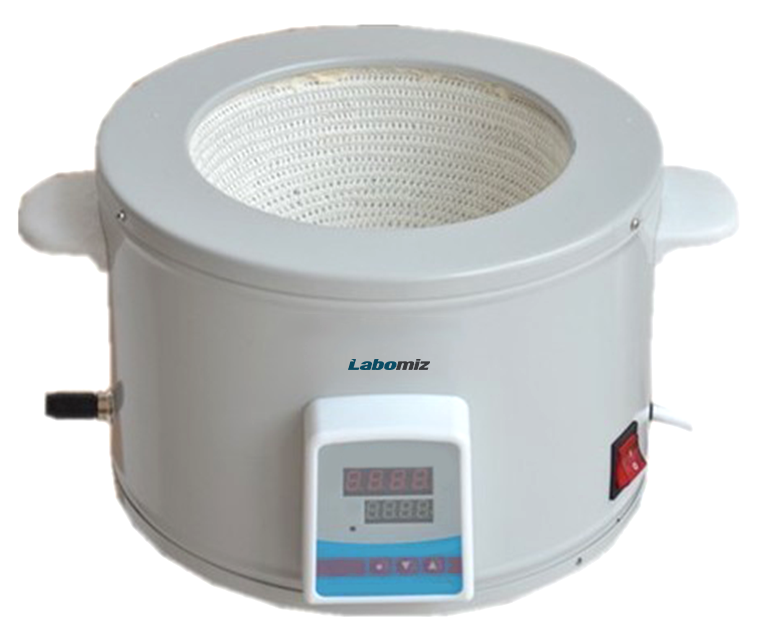

Intelligent Thermostatic Heating Mantle MITHM-1H

Intelligent Thermostatic Heating Mantle MITHM-1H is a table top unit with a capacity of 5 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Capacity	5 L
Power	1100W
Temperature	380 °C
Temperature accuracy	± 1 °C
Voltage	167 V ̴ 240 V, 110 V ̴ 120 V

Capacity of 5 L

Continuous working time

Alkali-free glass fiber

PID temperature control

Customized mantle available

Insulating course material of alumina silicate fiber

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

MITHM-1H

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm
