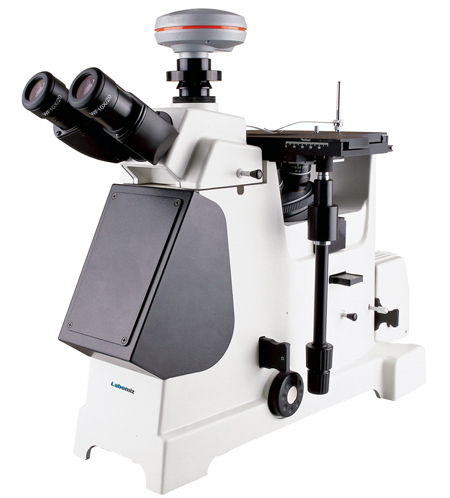

Inverted Metallurgical Microscope MIUM-5A
Inverted metallurgical microscope MIUM-5A is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.
| Viewing head | Siedentopf trinocular head |
| Viewing head inclination degree | Inclined at 30° |
| Interpupillary distance | 48 mm ~ 75mm |
| Eyepiece | WF10X/ 20 mm |
| Infinite Plan APO Objective | 5X/0.17/∞/0 (BF/DF)LWD 8.6 mm 10X/0.28/∞/0 (BF/DF)LWD 3.4 mm 20X/0.50/∞/0 (BF/DF)LWD 1.1 mm 50X/0.85/∞/0 (BF/DF)LWD 0.5 mm 100X/0.95(Dry)/∞/0 (BF) LWD 0.1mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Double layer mechanical stage 200 mm × 190 mm Moving range 40 mm × 40 mm Small stage plate, Φ16 mm, Φ40 mm, water drop type |
| Focus | Fine division 2 μm Move up 1 mm Down 12 mm |
| Kohler reflected illumination | 12V/100W Halogen light Polarizer and analyzer |
Vertical objective movement for focusing |
Infinity plan achromatic objectives |
Infinite optical system provides excellent optical functions |
Stable stand structure and comfortable operation |
Blue filters for cooler and more neutral color of image |
Green filters correct spherical achromatic aberrations |
Ground glass filters for more even and diffused light |
Infinite optical system and APO objective provide excellent optical functions |
DIC observation is optional |
Meet most of your requirements by high performance optical system, technological innovation and high stability |
Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.
