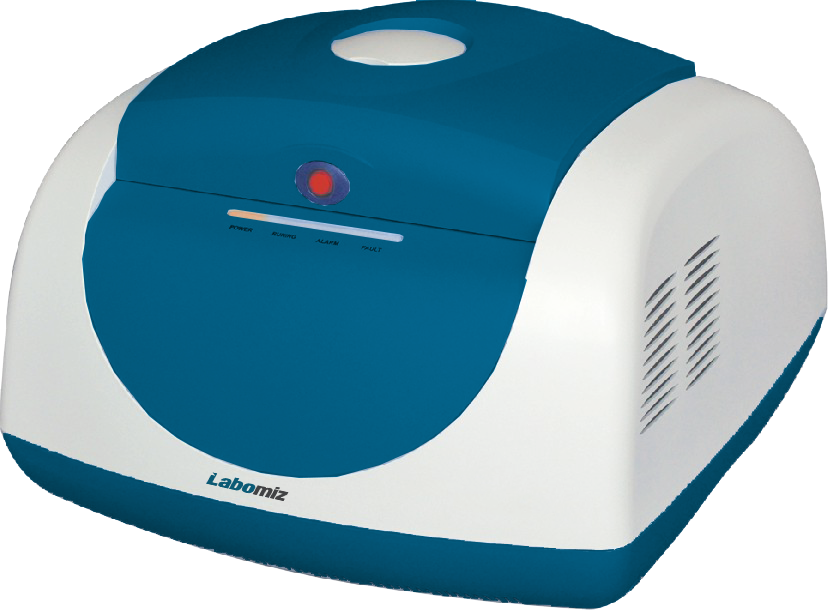

Real Time PCR MLRTP-3A

Real time PCR MLRTP-3A comes with 48 well capacity, durable, energy efficient design and advanced Ferrotec peltier and fibre optic technology. Equipped with advanced multi point temperature control module maintains thermal uniformity. It creates temperature gradient across the sample Block. With ability to handle one, two, three, four combinations of excitation and emission wavelengths this PCR finds applications across many fields

Sample Capacity	48 × 0.2 ml (Single tube or Strips 8 PCR tubes)
Max. channels number of fluorescence detection	4 channels
Detected Fluorescence	F1：FAM,SYBR Green I F2： VIC,HEX, JOE, Cy3,TAMRA F3： ROX, TEXAS- RED F4： Cy5, Quasar 670
Block Temp. Range	4 to 105°C (Min setting scale is 0.1°C)
Temp. Control Accuracy	≥ 4.0°C/sec
Temperature Uniformity	≤ ± 0.3°C
Ramping Rate	4.0 °C/sec
Gradient Temp. Range	1 to 24 °C
Hot-lid Temp. Range	80°C to 110°C
Operation System	Windows 2000/XP
Power Supply	100 to 240 V, 50/60 Hz, 650 W
Dimension ( L × W × H )	384 x 353 x 348 mm
Weight	13 kg

4 individual filters cover wide range of fluoresence detection wavelength
Constant current power supply improves thermal efficiency
Multi-point temperature control module
Fibre optics system provides reduced S/N ratio
Data storage during accidental power cut off
Automatic amplitude adjustment
Overheat protection, alarm warning
Electric heat preservation cover
Temperature gradient control up to 24°C
USB, RS232 interface for data transfer

Real time PCR used in sequencing, genotyping, cloning, mutagenesis and routine applications that require quantification and characterization of nucleic acids in academic institutes, research centres, diagnostics and laboratories.

MLRTP-3A
