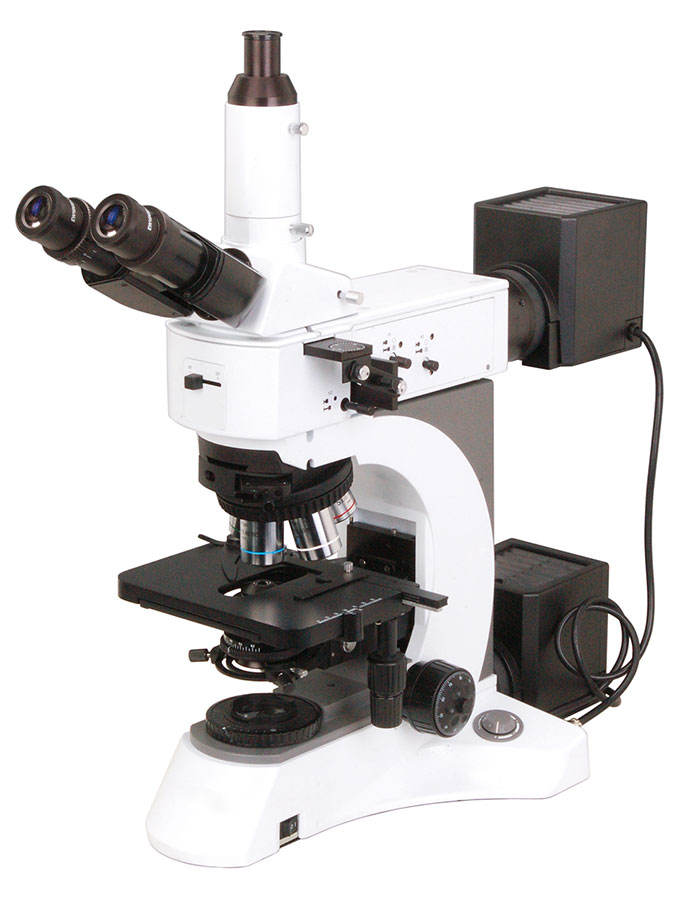

Metallurgical microscope MMUM-5A
Metallurgical microscope MMUM-5A is an infinite optical system with high magnification objective and long working distance. Ingenious stand and convenient operation takes place. Powerful transmitted and reflected systems with Kohler illumination.
| Viewing head | Siedentopf trinocular viewing Inclined at 30° Interpupillary distance 48 mm ~ 75 mm |
| Eyepiece | Extra wide field eyepiece
EW10×/22mm, eyepiece tube Φ30mm 5X/ 0.12/∞/ - (BF&DF) WD 12mm 10X/ 0.25/∞/ - (BF&DF) WD 10.0mm |
| Infinite plan achromatic objective | 50X/ 0.75/∞/ 0 (BF&DF) WD 0.32mm 100X/ 0.8/∞/ 0 (BF&DF) |
| Maximum sample height | 50 mm |
| Reflected light | 24V/100W Halogen light, Brightness adjustable Kohler illumination and aspherical condenser Blue, Green, Yellow and Ground glass filter |
| Focus | Fine Division 0.001 mm Coarse Stroke 37.7 mm per rotation Fine Stroke 0.1mm per rotation Moving range 30 mm |
| Nose piece | Backward quintuple nosepiece |
High magnification objective with long working distance |
Comfortable operation with low position focus knob |
Easy, safe and reliable lamp replacement device |
Halogen lamp and adjustable brightness |
Coaxial coarse and fine adjustment |
Field diaphragm and adjustable center |
Epi-illuminator with iris aperture diaphragm and iris field |
Used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It also can be used for metallography education and research.
