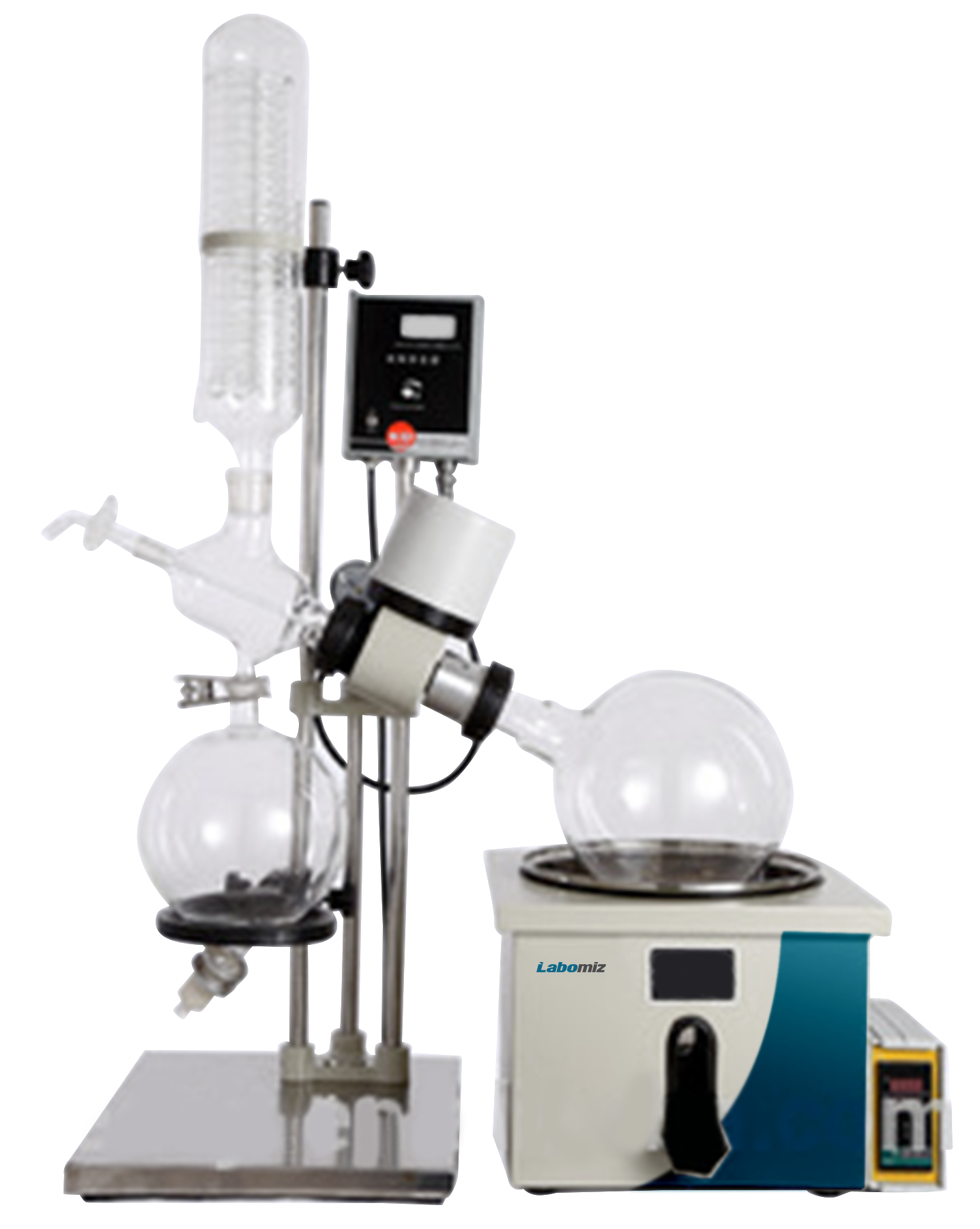

Small volume rotary evaporator MSRE-1D
Small volume rotary evaporator MSRE-1D features an evaporator flask with a range from 0.25 L to 2 L that allows processing of very small or limited amount of sample. It comprises an intelligent digital temperature control mode which features a temperature range from RT to 399 °C. PTFE fluoro rubber enables efficient sealing that ensures safety and increases the heat resistance of the operation and the instrument.
| Evaporating flask | 0.25 L ~ 2 L |
| Receiving flask | 0.25 L ~ 1 L |
| Water bath size | ɸ 24 × 15 mm |
| Lifting mode | Automatic lifting |
| Lifting height | 0 mm ~ 150 mm |
| Rotating speed | 0 rpm ~ 120 rpm |
| Water (oil) bath power | 1500 W |
| Temperature control mode/range | Intelligent digital/RT – 399 °C |
| Sealing mode | PTFE fluoro rubber sealing |
| Evaporation rate | ≥ 1 |
| Maximum vacuum degree | 0.098 MPa |
| Condenser | Vertical with charge pipe, large condenser, evaporating pipe |
| Rotating motor | 40 W |
| Voltage | 220 V; 50 Hz/60 Hz |
Rapid and easy lifting mechanism |
The evaporator can be titled horizontally in the range of 0 to 45° |
High evaporation rate of the vertical condensation system |
PTFE evaporating pipe and fluorine rubber mat to ensure efficient sealing and heat resistance |
Automatic temperature control digital display |
Borosilicate glass evaporating flask and receiving flask |
110 V/60Hz can be customized |
Used for heat-sensitivity material’s condensation, crystallization, separation, recovery and so on.
