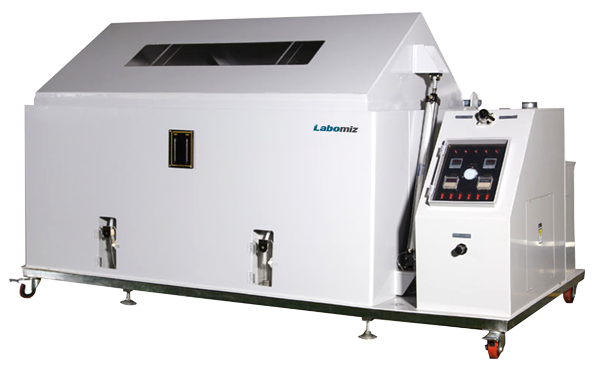

Salt spray chamber MSSC-1A
Salt spray chamber MSSC-1A is a 60 L chamber designed for corrosion testing. It comprises of a saline fog environment with a temperature range from (35 °C to 50 °C) and transparent angled (110º to 120º) chamber which allows easy observation of sample spraying condition and prevents contact of condensate with sample.
| Chamber capacity | 60 L |
| Interior dimensions (W x H x D) | 600 x 400 x 450 mm |
| Exterior dimensions (W x H x D) | 1130 x 1070 x 630 mm |
| Temperature range | 35 °C ± 1°C to 50 °C ± 1°C |
| Heater power | 3 kW + 0.75 kW |
| Air compressor | 1/ 2 HP |
| Power supply | AC 220 V 50 Hz |
| Weight | 50 kg |
Acrylic glass spray nozzle ( optimum spray distribution ) |
Quartz glass fired nozzle ( miniscule spray mist ) |
Glass fiber protected interior and exterior chamber with epoxy integral molding ( corrosion and leakage resistant ) |
Tower spraying system charged with salt solution filtration system |
110 ° to 120 ° angled transparent chamber top |
Water sealing between chamber top and cabinet ( no salt spray overflow ) |
Water level and temperature protection system |
Economic arrangement of control panel and display instruments |
Corrosion and temperature resistant material |
Recyclable PVC assembly |
Used to assess corrosion resistance of metal fittings, protective coatings, in tests like NSS, ACSS, CASS, CORK, in automotive, military, medical and maritime sectors
