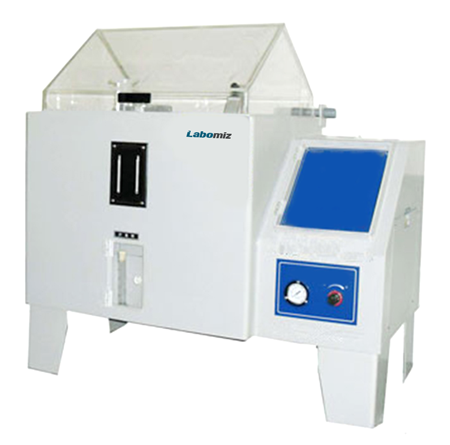

Salt spray chamber MSSC-1D | Labomiz

Salt spray chamber MSSC-1D

Salt spray chamber MSSC-1D is a PID temperature controlled titanium tube heating system with corrosion resistant temperature probe for anti-corrosive oil resistance assessment. The characteristic quartz glass nozzle inhibits crystallization for a long period of time.

Chamber capacity	108 L
Interior dimensions (W x H x D)	600 × 450 × 400 mm
Exterior dimensions (W x H x D)	1340 × 2880 × 1520 mm
Temperature range	35 °C ~ 50 °C
Saltwater tank capacity	15 L
Saturation temperature	47 °C ~ 63 °C
Spray settlement	1.0 ml/h.80 cm² ~ 2.0 ml/h.80 cm²
Power supply	AC 220 V ± 10 %; 50 Hz ± 10 %
Weight	510 kg

Digital LCD screen for visual monitoring

Multi-function timer accessible with power failure memory function

Conical diffuser in spray tower to maintain uniform fog volume

Automatic and manual water addition function for uninterrupted operation

Automatic power cut-off in case of over temperature or heating failure

Low water indication to prevent excess pressure or burning of the water tank

Seamlessly welded stainless steel pressure tank

Transparent acrylic sheet cover for better visualization

Used in experimental labs, oil refineries, petrochemical industries, chemical industries, paint and lubricants industries, etc.

MSSC-1D

Sr. No.	Name of the accessory	Quantity
1	Spray	1
2	Shelves	4
3	Glove stick	6
4	Standard cylinder	1
5	Temperature indicator	2
6	Collector	1
7	Glass nozzle	1
8	Defogging group	1
9	Cup	1
