6-Position hotplate MTHP-4A

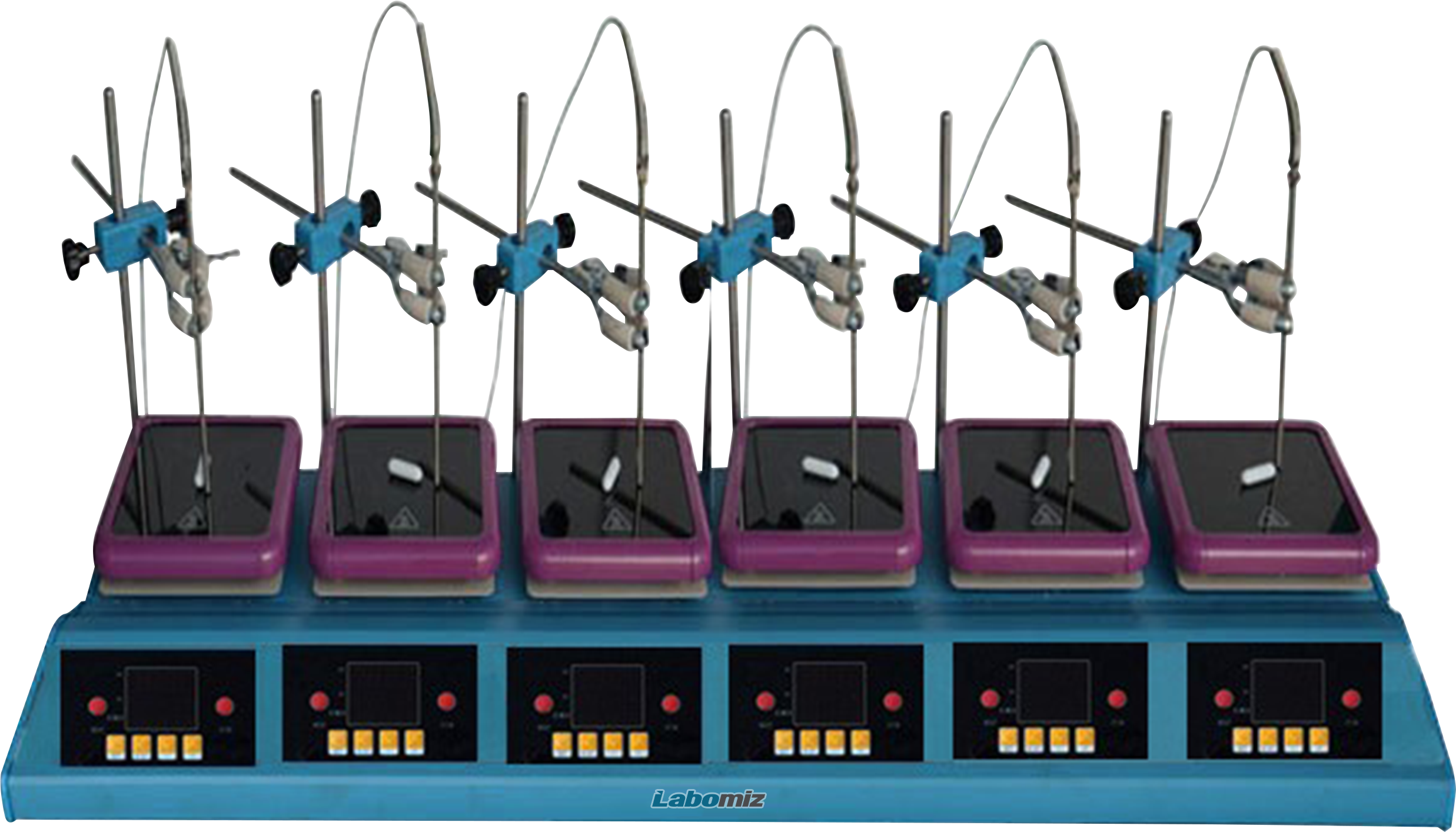

6-Position hotplate MTHP-4A is a ceramic top hotplate with a PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and it contains an outer thermo that measures and controls the liquid temperature value together with the front panel. The inner thermo controls and measures the hotplate stirrer temperature.

Temperature	400 °C
Ceramic plate dimension	140 mm × 140 mm
Power	450 W
Temperature accuracy	± 1 °C
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Continuous working time

PID controlled temperature

Digital display

Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields.

MTHP-4A

Accessories No	Accessories	Quantity
A1	Removable holder	6
A2	Clamp with screw	6
A3	Inner thermocouple (4 spin)	6
A4	Outer thermocouple (4 spin)	6
A6	Stir bar	6
A7	Four-finger Extension Clamp. Length300mm	6
