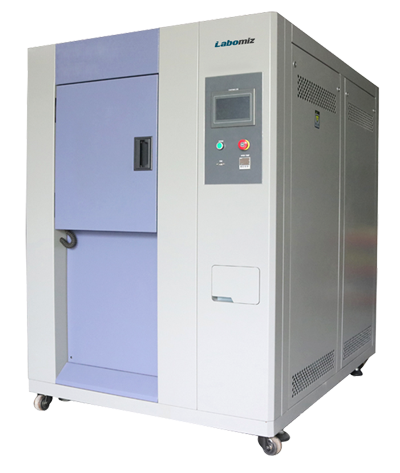

Three-zone thermal shock test chamber MTWC-3A
Three-zone thermal shock test chamber MTWC-3A is equipped with a hot, cold and a central ambient temperature zone. The hot and cold air is sequentially directed into the ambient zone to provide the thermal shock. It provides a thermal shock range from (-65 °C to 150 °C ) used in the industrial sector to test for environmental adaptability.
| Chamber capacity | 101 L |
| Low temperature chamber range | ( -80 °C to -10 °C ) |
| High temperature chamber range | 60 °C to 200 °C |
| Test chamber temperature range | ( -65 °C to 150 °C ) |
| Low temperature exposure time | 30 mins |
| High temperature exposure time | 30 mins |
| Recovery time | 5 mins |
| Ambient temperature | 5 °C to 35 °C |
| Pre-cooling time ( within 60 min ) | 20 °C to -80 °C |
| Pre-heating time ( within 20 min ) | 60 °C to 200 °C |
| Temperature accuracy | 0.1 % of F.S ± 1 digit |
| Temperature input | pt-100 V DCV |
| Humidity accuracy | 0.1 % of F.S ± 1 digit |
| Humidity input | pt-100 V or 5 V DCV |
| Refrigeration system | Water Cooled |
| Refrigeration stage | Cascade stage refrigeration system |
| Refrigerant | CFC free refrigerant |
| Compressor | Semi-hermetic compressor |
| Screen panel controller | 7-inch LCD touch screen |
| Operation mode controller | Program or setting |
| Memory capacity | 120 programs 1200 steps All repeat 999 cycles Part repeat 99 cycles |
| Interior material | Stainless steel plate ( SUS304 ） |
| Exterior material | Baked painting steel or stainless steel ( SUS304 ) |
| Insulation material | Rigid polyurethane foam and glass fiber wool |
| Power supply | AC 380 V ± 10 % 50 Hz |
| Interior dimensions | 500 x 450 x 450 mm |
| Exterior dimensions | 1540 x 1840 x 1700 mm |
| Weight | 10 kg |
Individually controlled zones ( hot, ambient and cold temperature zones ) |
Unique cool and heat storage |
Automatic defrosting technology |
Heat exchanger |
PC and touch screen controller connection ( software implementation ) |
CFC free refrigerant ( HFC-404 and HFC-23 ) |
Safety protection measures ( alarm indication ) |
Display of failure cause and troubleshooting |
PC remote monitoring computer ( optional ) |
Used in research, pharmaceutical and chemical industries for stress screening to assess products for their environmental adaptability and to test for product flaws
