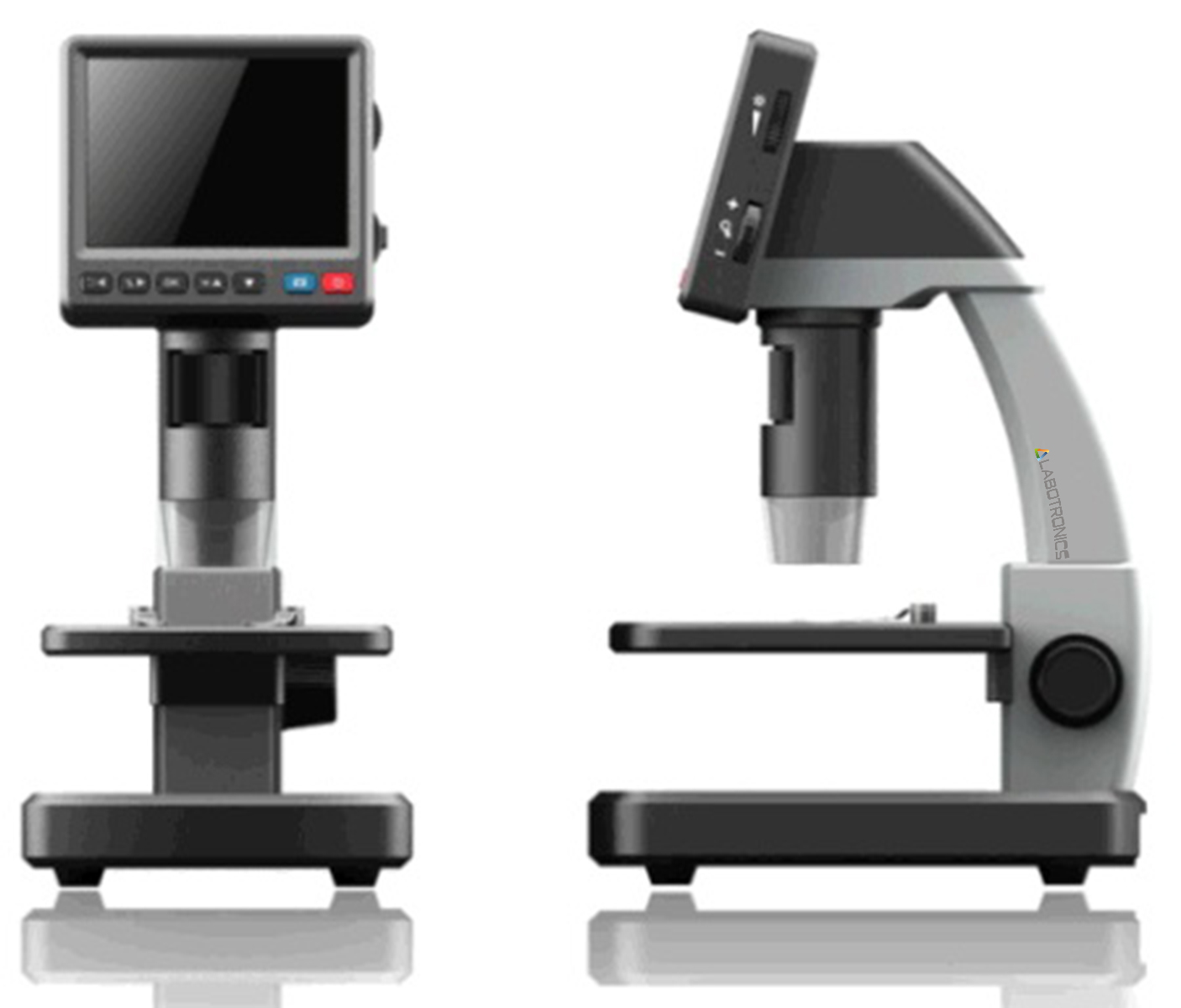

LCD USB digital microscope MUSB-2A
LCD USB digital microscope MUSB-2A is a portable and easy to operate unit. It provides powers from 20X and 300X with 5.0 MP Image sensor. LED illumination with LED lamps for enhancing details in microscopic images. Adjustable brightness to control resolution and contrast.Compatible for PC usage with USB connection.
| Image sensor | 5.0 Mega Pixels CMOS sensor (interpolated to 12.0 MP) |
| Image and video capture resolution | 12M 9M 5M 3M 1.3M VGA |
| Focus ranger | Manual focus from 10mm to 50mm |
| Frame rate | Max. 30 f / s under 600 Lus Brightness |
| Magnification ratio | 20X to 300X (Digital Magnification can be 1200X ) |
| Video format | _ |
| Still image format | _ |
| PC interface | _ |
| Power supply | _ |
| TV output | Available to any monitor with TV input inferface |
| Bundled software | MicroCapture (with measurement & calibration function) |
| Size | 149 x 104 x 227 mm |
| Weight | 1100 g |
3.5 inches LCD screen, resolution 320 × 240 |
Images and videos can be saved in micro SD card, up to 32G |
5.0 Mega Pixels CMOS sensor |
Manual Focus from 10 mm to 50 mm |
Rechargeable lithium battery (recharged by power adapter or USB) |
Used in printing, medical, electronics, forensic science laboratories and other scientific research units to examine solid objects such as coins, stamps, rocks, relics, insects, plants, skin, gems, and circuit boards
