Vertical Laminar Air Flow Cabinet MVLAF-1A | Labomiz

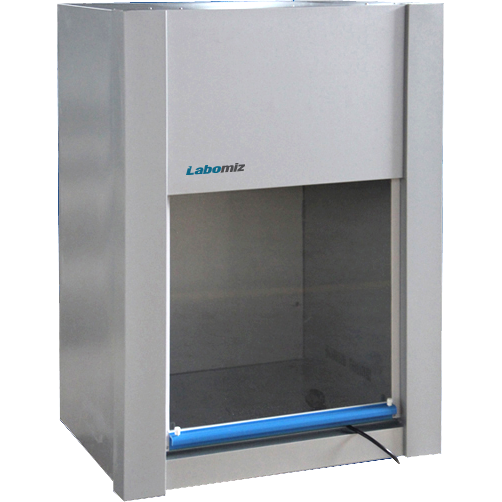

Vertical Laminar Air Flow Cabinet MVLAF-1A

Vertical Laminar Air Flow Cabinet MVLAF-1A is a clean air workstation which provides a particle free ultra-clean working environment for aseptic operations. This is carried out by the 0.5 micron / 0.3 micron pore size HEPA filter providing the sterile air flow in the working area .Vertical laminar air flow works on the principle that the vertical unidirectional flow is within the cabinet and is therefore less susceptible to the contamination in the surrounding area.

Dimension of working area ( W x D x H )	485 x 475 x 455 mm
Dimension of filter ( W x D x H )	480 x 460 x 38 mm
Fluorescent lamp	8 W
HEPA Filter	0.5 micron / 0.3 micron
Clean grade	Grade 100
No of bacteria	≤ 0.5 per utensil / hr.
Half ventilation peak value	< 0.5 µM
Pre-filter	High efficiency nylon filter
UV lamp	10 W
Controller type	Remote control
Noise	≤ 62 dB
Airflow velocity	0.25 m/s – 0.45 m/s
Power supply	AC 220 V / 50 Hz
Overall dimension ( W x D x H )	640 x 530 x 845 mm
Weight	50 kg

Stainless steel corrosion proof work surface

Digital display for fan speed , life of HEPA filter , lamp control

Excellent product protection

Alarm for HEPA filter replacement

Glass window for easy visualization and protection from UV rays

Remote control operation of laminar flow cabinet by controller

Particle retention by HEPA filter - 0.5 micron / 0.3 micron

Fluorescent lamp – 8 W

Sterilization by UV lights – 10 W

Air flow velocity - 0.25 – 0.45 m/s

Noise level ? 62 dB

Efficient insulation and quiet operation

Used in bio-assays and sterility testing, hospitals, pathological laboratories, microelectronics, optics, food and beverage, agriculture, animal husbandry, avionics, protection for open vessels of chemicals, solvents or powders , microbiological labs or other research control centers engaged in investigative work with sub-toxic materials

MVLAF-1A
