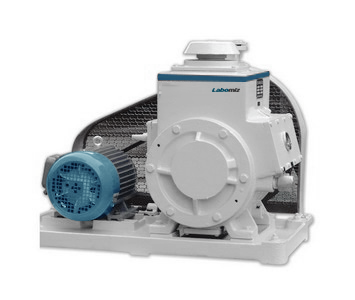

Description : Belt Drive Vacuum Pump MBDVP-1D is equipped with highly durable vacuum pump assembled for pumping air from sealed vessels. It provides ultimate vacuum pressure of ≤ 1Pa.The robust design and high end vacuum makes this belt driven vacuum pump powerful system. It can be used as a stand-alone machine or as a fore-pump, process pump or titanium pump of booster pump, oil diffusion pump and molecular pump.

Specifications :

Pumping Speed	1800 L / min
Ultimate Pressure	≤ 1 Pa
Oil Capacity	3 L
Rotating Speed	450 rpm
Temperature of Body	≤ 40 °C
Ambient Temperature	7°C ~ 40 °C
Noise Level	≤ 82 dB
Weight	230kg /216 kg
Inlet	65 mm
Dimension	780 x 500 x 560 mm
Power	3000 W
Power Supply	220 V, 50 Hz

Features : Belt driven type vacuum pump Robust design Ultimate vacuum pressure of ?1Pa High end vacuum Easy to use and maintain Highly durable and powerful Quiet, low-vibration operation

Applications: Belt Drive Vacuum Pump can be used for vacuum coating, vacuum filtering, vacuum heat treatment, vacuum smelting, vacuum tube, refrigeration, packing etc.
