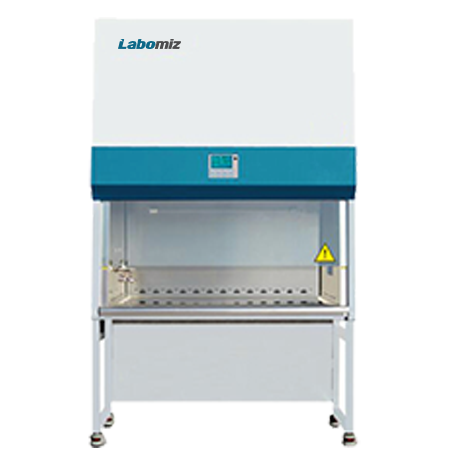

Description : Class II Biosafety Cabinet Type A2 MBSC-2G is a floor-standing unit, meets the requirement specified by NSF for Class II type A2 Biosafety cabinet. Features tough glass front window, water tap and gas tap, universal caster, waterproof socket, LCD display, I.V. bar with hooks etc. to carry out the experiments in a contaminant free environment along with operator protection. With 750 mm work surface height, the offered maximum opening is 550 mm (22 inch), and testing safety height of 254 mm (10 inch).

Specifications :

HEPA filters	99.999 % efficient at 0.3μm ( x2 )
Ascending wind speed	824 m3 / h (485 cfm )
Descending wind speed	60% 1212 m3 / h (713 cfm )
Exhaust airflow velocity	40% 824 m3 / h (485 cfm )
Illumination LED lamp	22 W x 2
Illumination	≥ 1000 Lux
UV lamp	40W
UV lamp emission	253.7 nm
Display	LCD Display
Work surface height	750mm with optional base stand
Window safety height	254mm (10’’)
Maximum opening height	550mm (22’’)
Filter guard	Aluminum alloy frame , glass filter paper
Power consumption	700W
Ground resistance	≤ 0.10Ω
Noise level	NSF 49≤67 dB/EN 12469≤65 dB
Alarm DC Motor	Abnormal airflow velocity; Filter replacement; Front window at unsafe height. One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Cabinet material	Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
Work table material	304stainless steel
Window material	Two-layer laminated toughened glass
Window thickness	≥5mm
Interior dimensions ( W x H x D )	1700*660*600mm
Exterior dimensions ( W x H x D )	1873*229*775mm
Packing Dimension ( W x H x D )	2020*1900*1080mm
Weight	375kgs

Features : NSF Certified Biosafety Cabinet with Motorized front window Large LCD Display to view all operation information Two layered laminated toughened anti UV glass >5 mm thickness Automatically adjusted (use of filter block) air speed Single piece of stainless steel used to make side and back wall 10° slanted front door to have comfort during long working hours Universal caster with brakes and levelling feet Stainless steel water tap and gas tap Waterproof socket to avoid short-circuits Can be attached with Exhaust thimble canopy Stainless steel I.V. bar with 10 hooks

Applications: Class II Biosafety Cabinet Type A2 MBSC-2G carry out various experiments across microbiology, biotechnology, pharmacy, clinical research industry in a ventilated and de-contaminated environment.

Optional Accessories: Armrest Airflow tester Formalin fumigation sterilizer Infrared sterilizer Electric height adjustable base stand, Remote control

Standard Accessories: Illuminating lamp ×2 UV lamp ×2 Base stand SS water & gas taps Drain valve Waterproof sockets Stainless Steel I.V. Bar with 10 hooks
