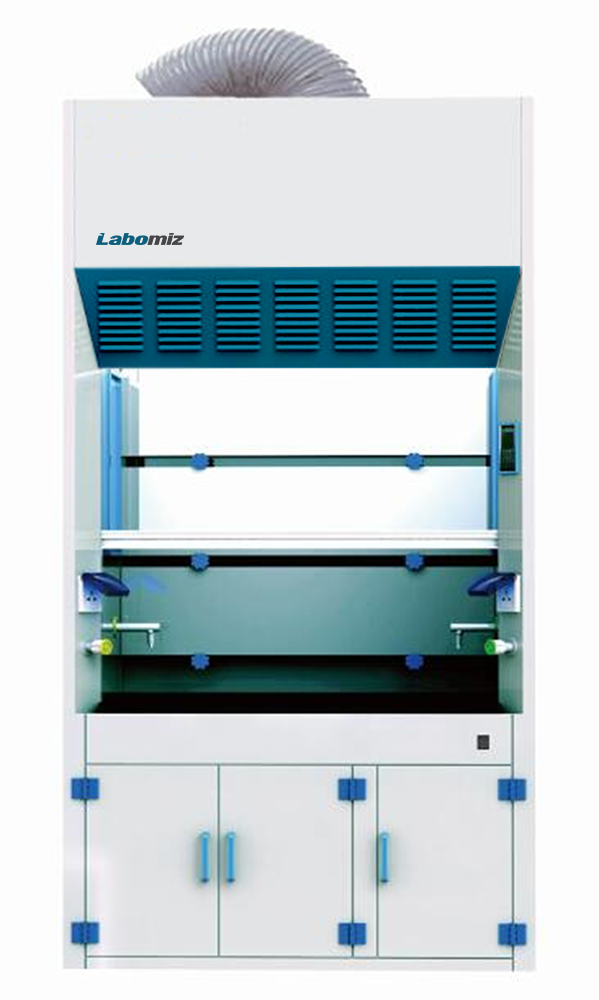

Description : Ducted PP fume hood MDFH-5A is a ventilation unit with an in-built PP centrifugal blower for resistance free elimination of toxic or contaminated vapors. It has maximum opening of 740 mm, 820 mm working area height. The fume hood features a manually operated acid and alkali resistant front window. The phenolic resin chemical resistant work table gives it a durable and presentable appearance.

Specifications :

Internal dimensions	787 × 560 × 700 mm
External dimensions	1047 × 800 × 2450 mm
Illuminating lamp	LED Lamp
Illuminating lamp power & quantity	12 W × 1
Work surface height	820 mm
Maximum opening	740 mm
Air velocity	0.3 m/sec ⁓ 0.8 m/sec
Noise	≤ 68 dB
Power supply ( AC )	220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz
Consumption	330 W
Main body material	Porcelain white 8 mm
Work table material	Phenolic resin
Packing dimensions- Main body (W × D × H)	1190 × 890 × 1620 mm
Packing dimensions- Cabinet (W × D × H)	1190 × 990 × 1040 mm
Weights	160 kgs

Features : Microprocessor control system Memory function available in case of power failure Bright light visualization through height adjustable front glass window LED display for digital visualization of the running parameters Anti-corrosive toughened glass window Thick transparent glass with maximum light and visibility

Applications: Used for personnel protection during microelectronics work, semi-conductor design, chemical research, and development and production assembly processes in industries, laboratories, etc.

Optional Accessories: Sr. No. Name of the accessory 1 PP work table, epoxy resin board or ceramic board 2 Outer centrifugal blower

Standard Accessories: Sr. No. Name of the accessory Quantity 1 Illuminating lamp 1 2 Water tap 1 3 Gas tap 1 4 Water sink 1 5 Base cabinet 1 6 Waterproof sockets 2 7 PVC duct ( 4 meters ) 1
