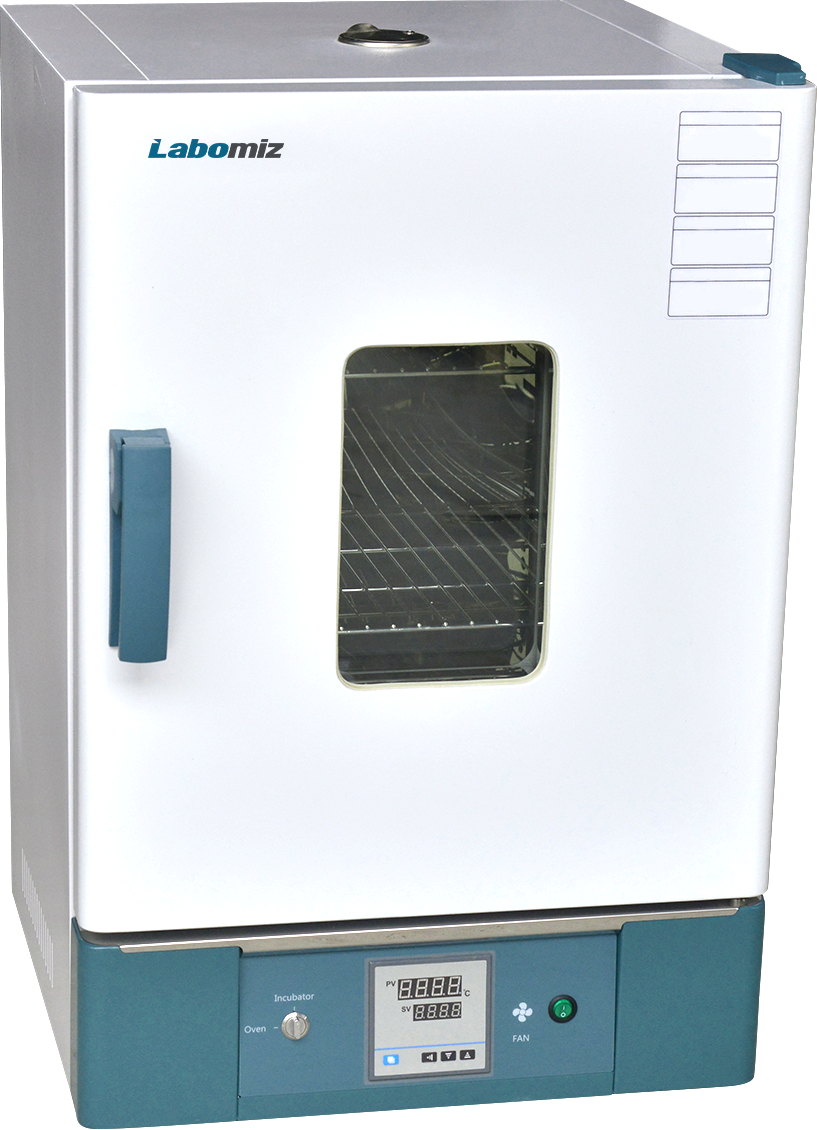

Description : Drying oven incubator MDOI-1F is a dual functioning oven-incubator with a rapid heating and working temperature of 5 °C to 80 °C for incubator and 80 °C to 300 °C for the oven. Built-in silicate insulated layer prevents heat loss. The control system combines the two temperature ranges in one unit through a simple high/low switch. Forced air convection provides optimal air circulation, temperature uniformity, and brief heat-up time.

Specifications :

Chamber volume	230 L
Number of shelves	17
Inner chamber size ( W x L x H )	600 x 500 x 750 mm
Temperature range	Incubator : RT +5 °C to 80 °C Drying oven : 80 °C to 300 °C
Cycle mode	Forced convection
Temperature resolution ratio	0.1 °C
Temperature motion	± 1 °C
Temperature uniformity	Incubator : ± 1 °C Drying oven : ± 2.5 %
Inner chamber	Mirror stainless steel
Outer shell	Cold rolled steel electrostatic spraying chamber
Insulation layer	Silicate heat preservation board
Heater	Stainless steel heater
Exhaust hole	ᴓ 28 mm top ( with test hole function )
Display mode	LED
Timer	0 ~ 9999 min ( time wait function )
Operational function	Fixed temperature operation , timing function , auto stop
Sensor	Pt100
Load per rack	15 kg
Shelf space	35 mm
Power	3.0 kW
Power supply	AC 220 V / 13.6 A
Exterior dimensions ( W x L x H )	730 x 680 x 1250 mm
Weight	94 kg

Features : PID controlled dual temperature Homogenous temperature distribution Cold rolled steel electrostatic sprayed exterior Touch button setting for easy user convenience Four-digit temperature measurement on upper row Circulating fan motor hot air ensures uniform temperature distribution in a chamber Internal parameter locking preventing unwanted changes Transparent window provision for sample process viewing Overheating is prevented by automatic circuit shut-off Over-temperature and over-current protection Audio visual alarm for system dysfunctionality

Applications: Used for drying, sterilizing and incubating samples in the laboratory, industrial and general purpose environment

Optional Accessories: Accessory No Accessory 1.        RS485 interface 2.        Printer 3.        Remote control 4.        Wireless SMS alarm 5.        USB data storage

Standard Accessories: Accessory No Accessory Quantity 1.        Shelf 2 2.        Shelf frame 4

Optional Features: Temperature measurement display on upper LCD screen Temperature setting display in lower row Mechanical independent temperature limiter Four grades and three speed adjustable fan Sensor deviation correction Self-tuning temperature overshoot Internal parameter locking preventing unwanted access Parameter memory saving post power off
