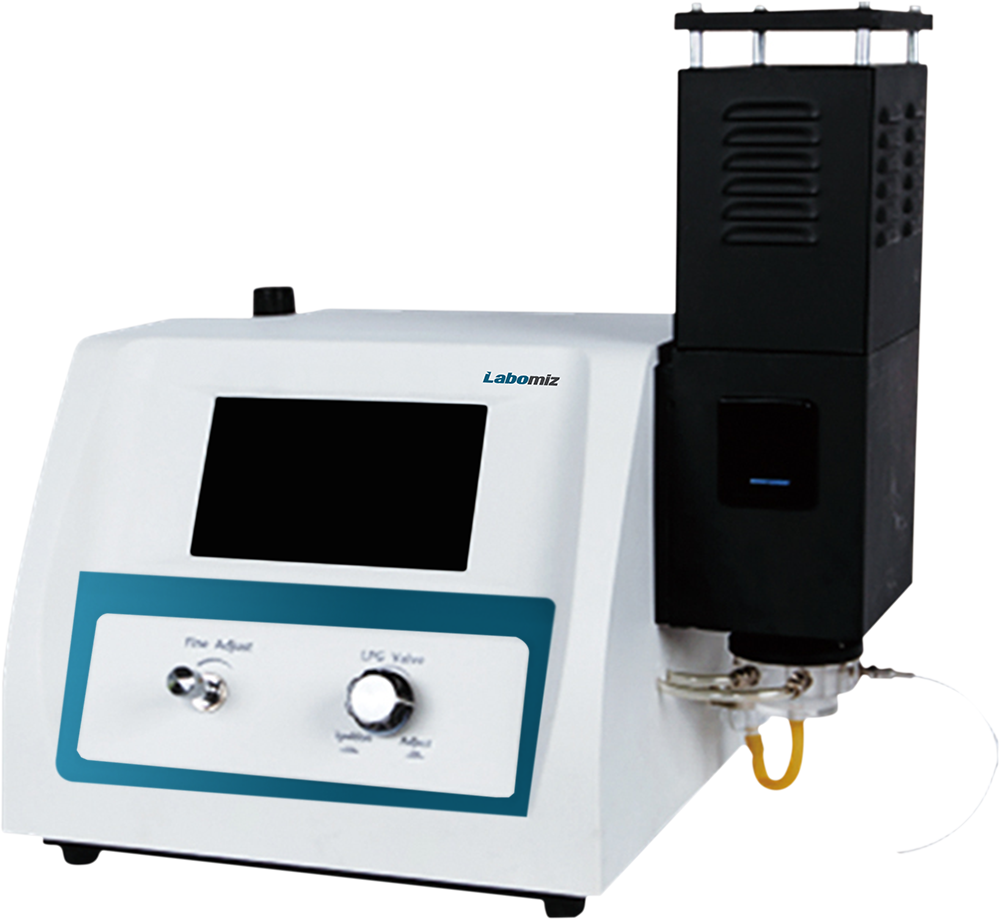

Description : Flame Photometer MFSP-1E is an analytical instrument with pre-selection flame sizes for elemental detection. Liquefied petroleum gas is consumed for burning of the flame to produce luminescence. It is equipped with a flame protection for safety of the operator.

Specifications :

Elements detected	K, Na, Li, Ca
Sensitivity	K- 0.01 ppm Na- 0.01 ppm Li- 0.1 ppm Ca- 2 ppm
Range	K- 0 ppm ~ 100 ppm Na- 0 ppm ~ 160 ppm Li- 0 ppm ~ 100 ppm Ca- 0 ppm ~ 1000 ppm
Method detection limit	K- ≤0.156 ppm Na- ≤0.184 ppm Li- ≤0.105 ppm Ca- ≤2 ppm
Linearity	K- 0.195 ppm (0.39 ppm ~ 3.12 ppm) Na- 0.69 ppm (1.15 ppm ~ 9.2 ppm ) Li- 0.15 ppm (0.25 ppm ~ 5 ppm) Ca- 3 ppm (5 ppm ~ 100 ppm)
Linearity error	K- ≤0.195 ppm Na- ≤0.69 ppm Li- ≤0.147 ppm Ca- ≤3 ppm
Sample uptake	< 6 mL/min
Repeatability	1% CV for 20 consecutive samples
Response time	< 8s
Ambient temperature	10 °C ~ 35 °C
Humidity	≤ 85%
Power supply	AC 110 V ±10%; 50 Hz AC 220 V ±10%; 60 Hz
Power consumption	250 W
Dimensions	580 × 540 × 400 mm
Weight	18 kg

Features : Adjustable measuring range Direct concentration read out Large LCD touch screen display for ease of accessibility Correlation coefficient with automated calculative function Equipped with an air compressor for stable flow rate of air during flammation USB interface

Applications: Used in the fields agriculture, chemistry, pharmacology, pathology, biology, forensics, etc. for analysis of particular elements in the material.

Standard Accessories: Sr. No. Name of the accessory Quantity 1. Air compressor 1 unit
