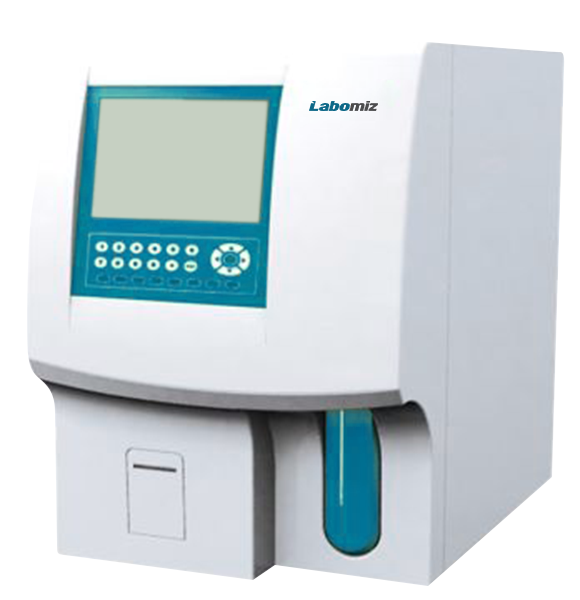

Description : Hematology analyzer MHEA-1A is a 3-part differential fully automatic unit that can carry out 60 tests per hour. It features a built-in thermal printer and it automatically calculates CV%, SD and saves data. Storage for up to 200,000 results including histograms.

Specifications :

Throughput	60 tests / hr
Assay items	22 parameters, 3 parts differential of WBC
Sample volume	13 µL (Whole blood) 20 µL (Prediluted blood)
Parameter	WBC LY LY% MO MO% GR GR% RBC HCT MCV RDW-SD RDW-CV MCH MCHC PLT MPV PCT PDW WBC histograms RBC histograms PLT histograms
Linearity range	WBC: 0.0 to 99.99 (X 109/L) RBC: 0.0 to 9.99 (X 1012/L) HGB: 0.0 to 300 (g/L) PLT : 0 to 999 (X 109/L)
Accuracy (CV %)	WBC ≤ 2.0 % RBC ≤ 1.5 % PCT ≤ 3.0 % PLT ≤ 5.0 % HGB ≤ 1.5% MPV ≤ 3.0 % HCT ≤ 2.0 % MCV ≤ 1.0 % PDW ≤ 3.0% MCH ≤ 2.0 % MCHC ≤ 2.0%
Display	LCD
Storage	200,000 results including histograms
Measuring principle	Impedance for RBC, PLT, Baso Photometry for HFB WBC diff.: optical light scatter + impedance
Output	One RS232, one PS/2 and two USB. Available for LIS
Power supply	AC 110 C 60 Hz or 220 V 50 Hz
Dimension	430 x 320 x 550 mm
Weight	20 kgs

Features : Automatic probe interior and exterior washing 7 inch display screen Both whole blood and prediluted blood test modes are available Automatic self-checking and self-warning functions Clog prevention Automatic standby Safe reagents not causing any harm to the environment

Applications: Used to count leucocytes, red cells and platelets in blood and also determine hemoglobin and hematocrit levels.
