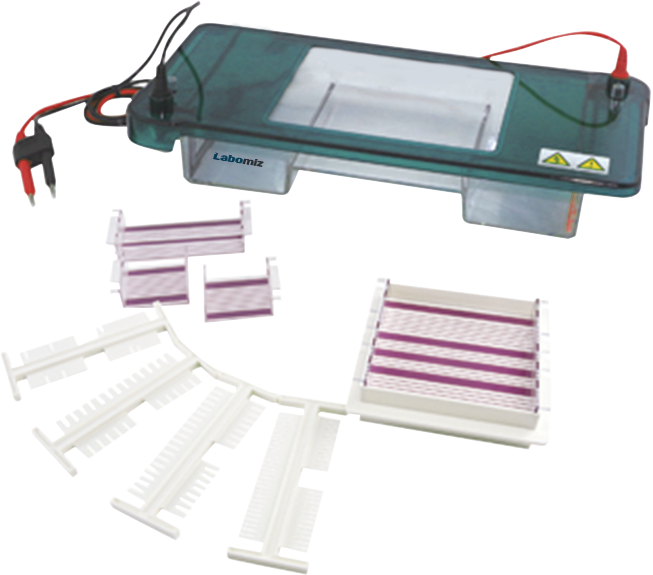

Description : Horizontal Electrophoresis Unit MHEU-2D is a high resolution horizontal system with leak proof assembly for electrophoretic procedures. Large volume buffer ensures cooling effects and stable pH value for running gel at high voltage. Integrated transparent safety lid avoids electricity leakage and sample volatilizing in the cell. Inclusive long life platinum electrodes and high transparent material for gel molding.

Specifications :

Gel trays (W x L)	140 x 140 mm, 140 x 70 mm, 70 x 70 mm
Buffer volume	900 mL
Rows of combs	1 ~3
Comb thickness	1 mm, 1.5 mm
No of samples	1 to 87
Gel tray	2 mm
Gel making mode	Gel box
External dimensions(L x W x H )	360 x 187 x 63 mm
Gross weight	2 kg

Features : Dismountable electrodes (easy maintenance) Automatic power off when lid is removed Lugs for easy lid removal and transportation High quality gel casting apparatus prevents gel leakage Colored sample background (sample addition)

Applications: Used in molecular biology, forensic science, research and diagnostic lab, microbiology, biochemistry to separate DNA, RNA and proteins for DNA fingerprinting, drug testing, protein analysis, genetic testing, PCR amplification, sample quantification, etc.

Standard Accessories: Sr No Accessory name Quantity 1 Body tank with electrode 1 2 Gel tray (140 x 140 mm) 1 3 Gel tray (140 x 70 mm) 1 4 Gel tray (70 x 70 mm) 2 6 Gel box 1 7 1.5 mm thickness 1/2/3 wells comb 1 8 1.0 mm thickness 6/14 wells comb 1 9 1.0 mm thickness 8/17 wells comb 2 10 1.0 mm thickness 13/29 wells comb 2 11 Buffer saving module 2 12 Electrical cable 1
