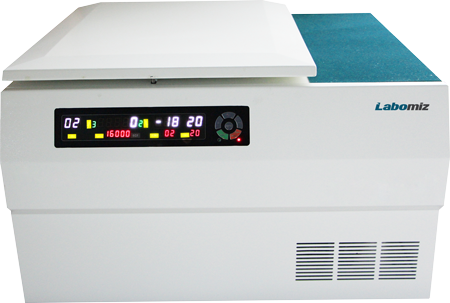

Description : High speed refrigerated centrifuge MHRC-1E is a benchtop unit with a high speed of 22000 rpm and a temperature range between -20 ℃ ~ 40 ℃. Capable of maintaining lower temperature (below -4 ℃) even at maximum speed. Digitalized LCD panel for viewing ongoing parameters with simultaneous regulation of speed and time. Features automated calibration of RCF/RPM values and automatically displays it.

Specifications :

Speed range	22000 rpm
Maximum RCF	32465 × g
Speed accuracy	± 20 rpm
Time range	1 min ~ 99 mins
Maximum capacity	4 × 750 ml
Temperature range	- 20 ℃ ~ 40 ℃
Temperature accuracy	± 2.0 ℃
Power supply	AC 220 V ± 22 V, 50 Hz, 16 A
Power	1300 W
Noise level	< 65 dB
Dimensions	735 mm × 800 mm × 545 mm
Weight	105 kg

Features : Maximum speed - 22000 rpm Short spin function for instantaneous centrifugation Microprocessor control feature, automatically detects rotors and speed limit Ten types of acceleration and deceleration control, with free stopping 9th control time longer than 540s Maintains lower temperature value (-4 °C), even at maximum speed Automatically calibrates speed and centrifugal force value User friendly interface for convenient simple operation LCD control panel – viewing and regulating ongoing parameters (speed and time) Secondary display for viewing countdown less than one minute Electronic lid locking system for user’s safety (over speed protection and imbalance) Lid opens automatically on completion, preventing overheating of samples Equipped with replaceable rotors for different sample concentrations

Applications: Used in research laboratories for DNA and RNA analysis, PCR or antibody analysis, radioactive immunology, isolation and purification of blood samples

Rotor Selection: Rotor type Max. speed Capacity Max. RCF Angle rotor 22000 rpm 12 × 1.5 /2.2 ml 32465 × g 21000 rpm 16 × 1.5 /2.2 ml 29200 × g 18000 rpm 10 × 5 ml 20800 × g 16500 rpm 24 × 1.5 /2.2 ml 24890 × g 16000 rpm 18 × 0.5 ml 19200 × g 15000 rpm 2 × 8 × 0.2 ml PCR tubes 13890 × g 15000 rpm 12 × 10 ml 23120 × g 14000 rpm 6 × 50 ml round bottom 19800 × g 13000 rpm 6 × 50 ml sharp bottom 17950 × g 11000 rpm 12 × 15 ml 12450 × g 11000 rpm 4 × 100 ml 13000 × g 10000 rpm 6 × 100ml 11890 × g Horizontal rotor 5500 rpm 4 × 50 /100 ml 5310 × g 4200 rpm 8 × 50 ml 3100 × g 4200 rpm 16 /24 × 10 /15 ml 3100 × g 4200 rpm 32 × 10 /15 ml 3100 × g 4200 rpm 48 × 5 /7 ml 3100 × g 4200 rpm 64 × 5 /7 ml 3100 × g 4200 rpm 72 × 5 /7 ml 3100 × g 4200 rpm 4 × 250 ml 3850 × g 4200 rpm 6 × 250 ml 3850 × g 4200 rpm 4 × 500 ml 3950 × g 4200 rpm 4 × 750 ml 3950 × g 4200 rpm 4 × 24 × 5 ml 3950 × g ELISA plate 4200 rpm 2 × 2 × 96 wells 2530 × g 4200 rpm 4 × 2 × 96 wells 3550 × g
