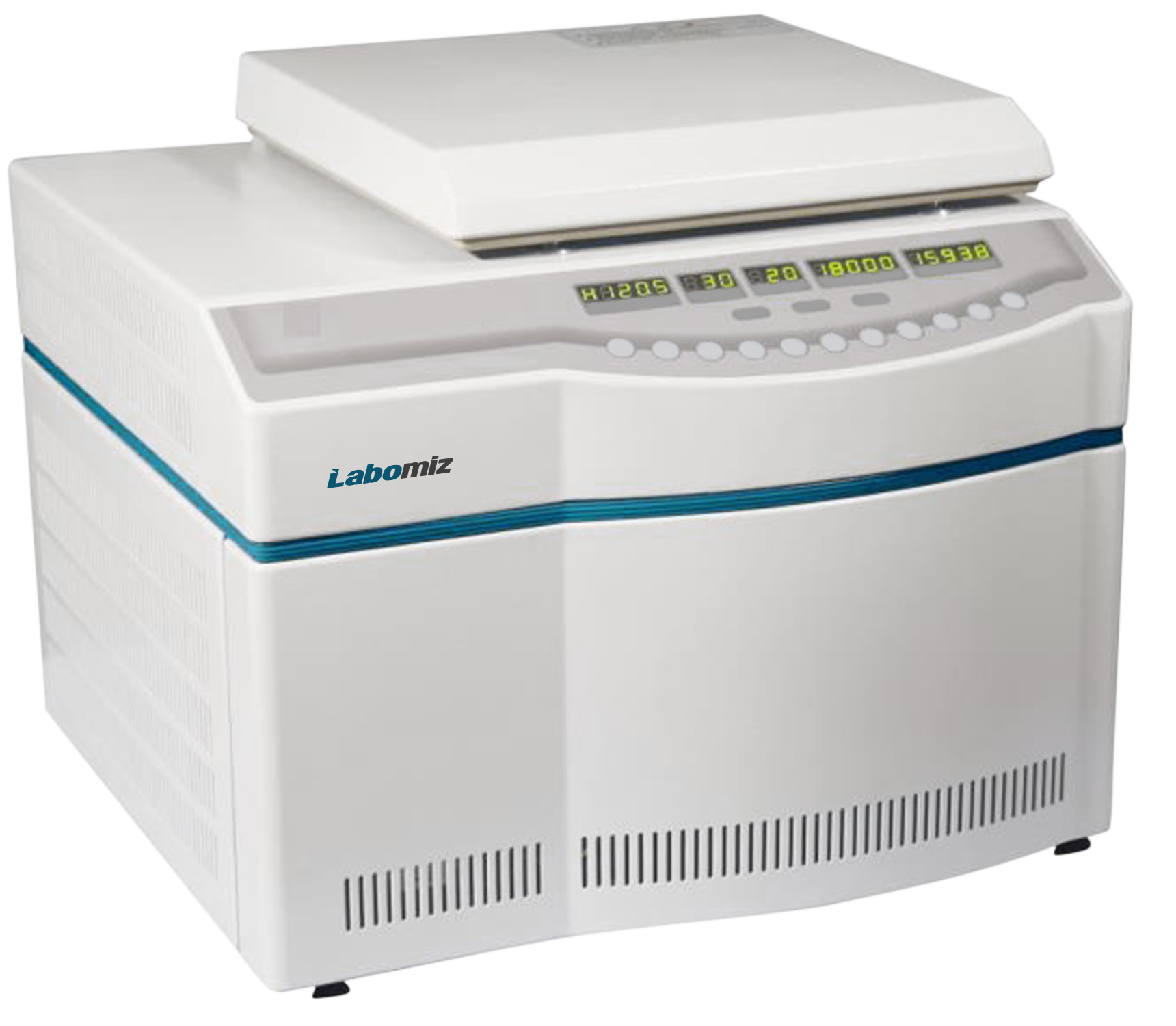

Description : High speed refrigerated centrifuge MHRC-2E is a microcomputer controlled centrifuge with high refrigeration efficiency. Features an electric door that provides better safety. Digitalized LCD panel for viewing ongoing parameters with simultaneous regulation of speed and time. The parameters can be changed anytime during the process without any downtime.

Specifications :

Speed range	23000 rpm
Maximum RCF	33097 x g
Speed accuracy	± 100 rpm
Time range	1 min ~ 23 hrs. 59 mins
Temperature range	-20 °C to -40 °C
Temperature accuracy	± 2 °C
Power supply	AC 220 V 50 Hz
Power	2000 W
Noise level	≤ 55 dB
Dimensions	690 x 630 x 520 mm
Weight	110 kg

Features : Nine ascending and descending rate selection mode Ten work mode options that can free programming call Double synchronous display screen Full steel structure with stainless steel centrifugal cavity Two optional timing mode with easy switching options Magnetic locks and double lock rod design doors AC frequency conversion motor drive

Applications: Used for handling larger sample sizes at high angular velocities. They are ideal for a wide range of separation tasks used in the cell culture and clinical sectors involving DNA, RNA, viruses, proteins and more.

Rotor Selection: Model Max speed Max RCF Rotor capacity Angle rotor 01 23000 rpm 30735 x g 24 × 0.2 ml Angle rotor 02 23000 rpm 26614 x g 12 × 0.5 ml Angle rotor 03 21000 rpm 32458 x g 24 × 0.5 ml Angle rotor 04 21500 rpm 33097 x g 12 × 1.5 ml / 2.2 ml Angle rotor 05 16000 rpm 22810 x g 24 × 1.5 ml /2.2 ml Angle rotor 06 16000 rpm 17459 x g 12 × 5 ml Angle rotor 07 15000 rpm 18743 x g 12 × 7 ml Angle rotor 08 12000 rpm 14170 x g 8 × 15ml Angle rotor 09 15000 rpm 20880 x g 12 × 10 ml Angle rotor 10 12000 rpm 16099 x g 6 × 50 ml Angle rotor 11 12000 rpm 14645 x g 6 × 100 ml Angle rotor 12 8000 rpm 9159 x g 6 × 250 ml Angle rotor 13 16000 rpm 26331 x g 36 × 1.5 ml /2.2 ml Angle rotor 14 18000 rpm 22097 x g 8× 4 × 0.2 ml (PCR special rotor? Angle rotor 15 16000 rpm 31482 x g 48 × 0.5 ml Swing out rotor 01 5000 rpm 4137 x g 4 × 100 ml (Round hanging cup? 8 × 50 ml adapter 12 × 15 ml adapter 16 × 10 ml / Vacuum blood tube adapter ELISA plate reader 01 4000 rpm 1651 x g 96 holes × 2 ELISA plate reader 02 4000 rpm 2263 x g 96 holes × 4
