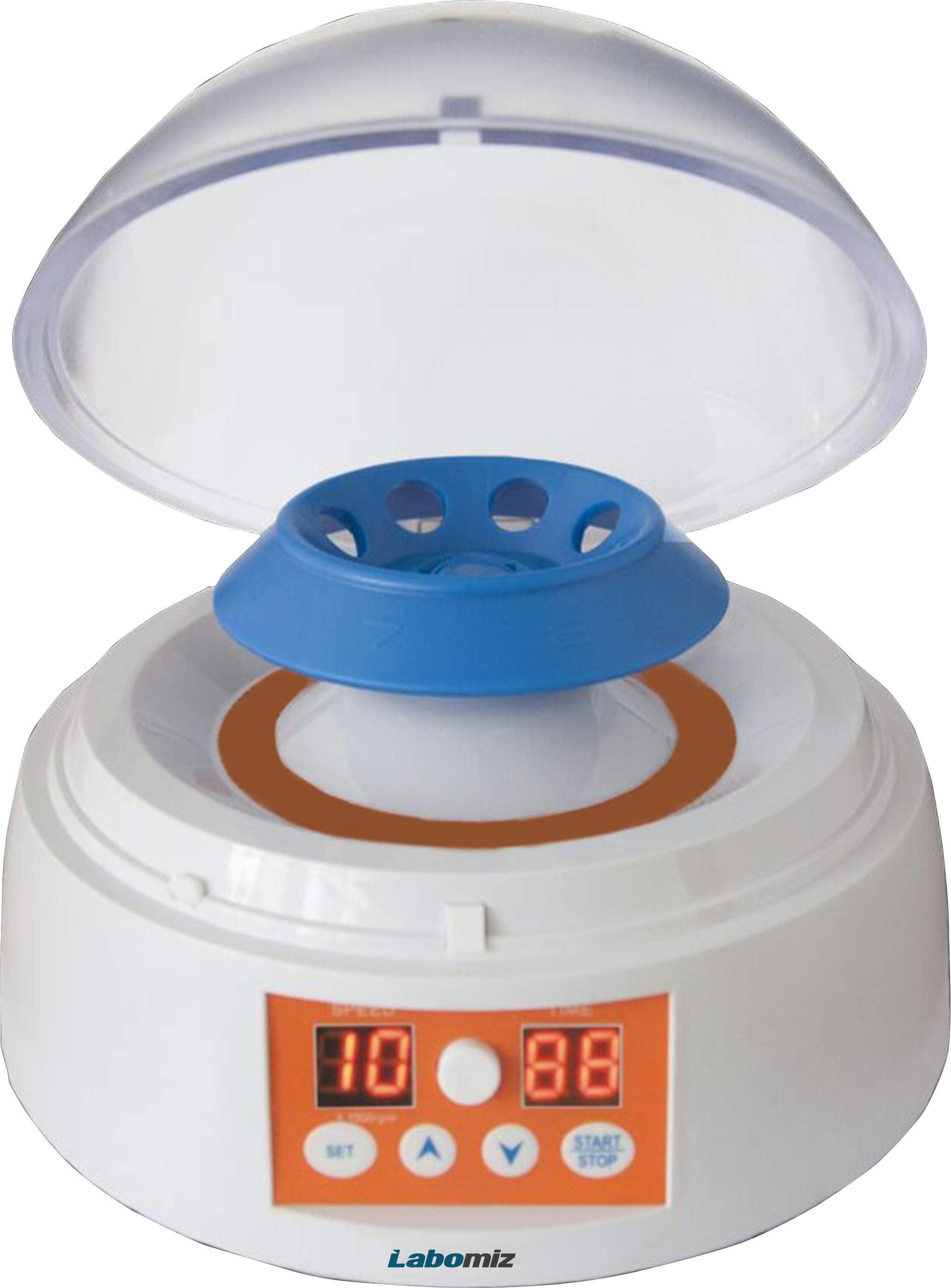

Description : Palm centrifuge MPHC-1B is a palm sized centrifuge with a speed range of 4000 rpm ~ 12000 rpm and quick spin options for micro filtration, facilitating easy handling. It quickly reaches the maximum speed making it ideal for spinning down fluids from tube caps and walls. Encased is a user friendly control panel for adjusting speed and time. Automated lid opening system at the end of process avoids over spinning of samples and damage caused due to overheating.

Specifications :

Speed range	4000 rpm ~ 12000 rpm
Maximum RCF	7000 x g
Speed accuracy	100 rpm
Time range	1 to 99 minutes
Max. capacity	8 × 1.5 ml / 2.0 ml 4 × 8 × 0.2 ml
Speed increment	1000 rpm
Maximum RCF increment	1000 rpm
Power supply	AC 85 V ~ 245 V, 50 Hz
Noise level	≤ 48 db
Dimensions	200 mm × 180 mm × 125 mm
Weight	3.5 kg

Features : Max speed of 12000 rpm Easy to use control panel with LED display to view and adjust time /speed Ideal for quick spin downs and micro filtration Clear lid to view sample processing Sample accelerates and decelerates in seconds Stable running with high speed accuracy Easy replaceable rotors

Applications: Used for microbial sample processing, PCR analysis, for pelleting of DNA and RNA samples, serum separation processes

Rotor Selection: Rotor type Max. speed Capacity Max. RCF Standard Round rotor 12000 rpm 1.5 ml × 8 7500 × g 12000 rpm 2 ml × 8 7500 × g PCR rotor 12000 rpm 0.2 ml × 32 7500 × g 12000 rpm 0.2 ml × 4 PCR 8 strips 7500 × g Optional Swing bucket rotor 12000 rpm 1.5 ml × 2 (2place) 7500 × g Gene chip round rotor 12000 rpm 2 gene chips (2 place) 7500 × g
