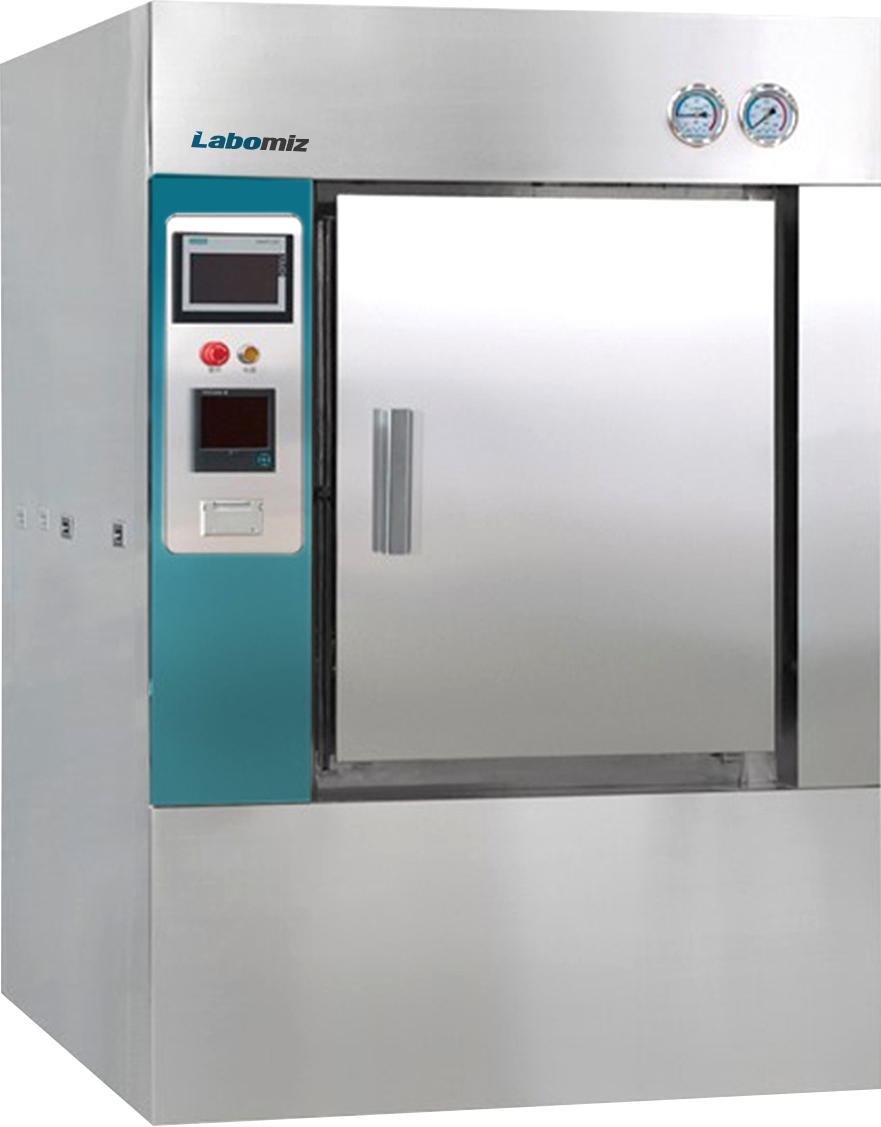

Description : Pulse vacuum autoclave MPVA-1F is a horizontal sterilizing unit with motor driven door system that adopt pure steam and clean air as a medium of sterilization. It features vacuum dehumidification combined with jacket heating for drying of items. It is characterized with the advanced technology of temperature time and F0 dual control system

Specifications :

Steam consumption	55 kg
Cooling water	300 kg
Volume	1.2 m3 1200L
Door system	Motor driven
Power	4.5 kW
Water pressure range	0.15 MPa ~ 0.3 MPa
Steam pressure range	0.4 MPa ~ 0.8 MPa
Compressed air	0.5 MPa ~ 0.8 MPa
Design Pressure	0.245MPA
Temperature	139 °C
Chamber dimensions	1500 × 680 × 1180 mm
External dimensions	1820 × 1420 × 2000 mm
Net weight	2000 kg

Features : PLC touch screen for ease of accessibility Data storage and process management Acid proof SS chamber Independent data recording Compressed air sealing technology

Applications: Used in sterilizing clothes, fabric, metal instruments, biological products, utensils, medical appliances, medical dressing, herbal medicines, culture media, etc. in the fields of botany, zoology, biochemistry, forensic, pharmaceuticals, cytology, immunology, genetics, bioengineering, health and sanitary, etc.
