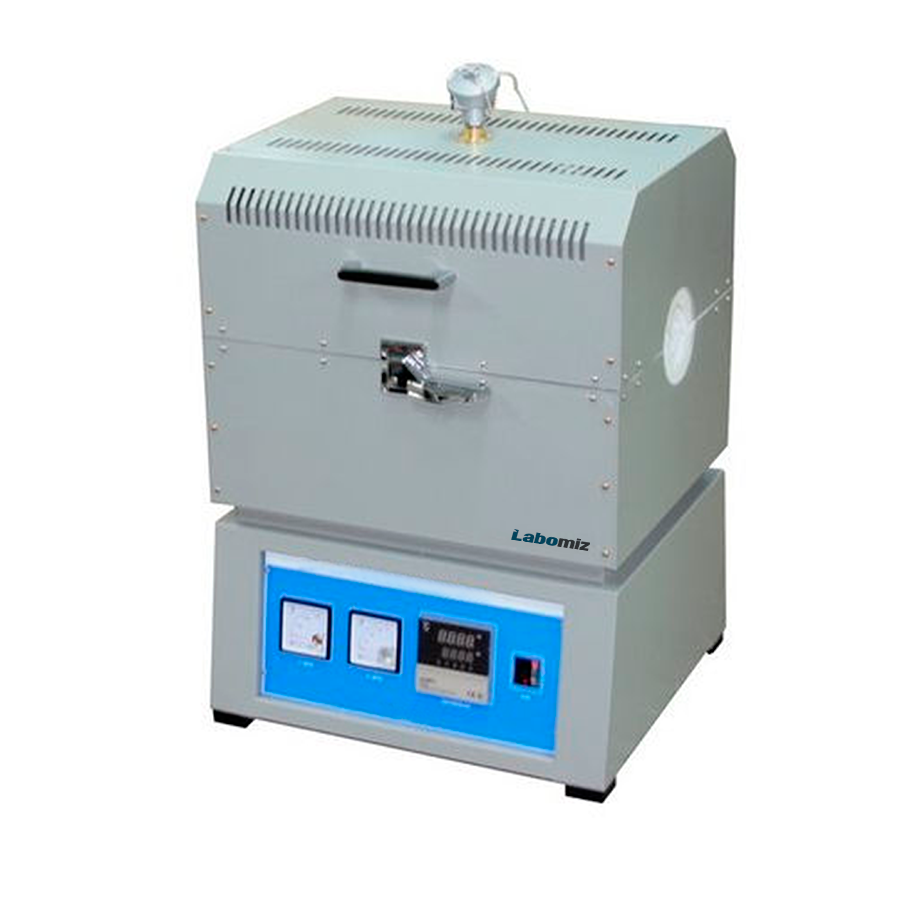

Description : Tube furnace MTF-1A is a box type table top unit with PID digital controller that is installed at the base of chamber controls heat temperature, air flow, pressure and speed. FeCrAl alloy molded heating element provides intermediate electric resistance and withstand high temperature. Security system works with an outdoor double-case and strengthens itself with adiabatic materials. Safety devices include ELB ( elastic load balancing ) and overheating protection system for end user safety.

Specifications :

Heater power	2 kW
Heating tube diameter ( Ø )	50 mm
Heating tube length	300 mm
Maximum temperature range	1000 °C
Working temperature range	300 °C ~ 900 °C
Temperature accuracy	± 1 % ( at setting temperature )
Power ( 1 phase )	AC 230 V 50 Hz / 60 Hz
Overall dimensions ( W × D × H )	550 × 500 × 755 mm
Weight	42 kg

Features : Ceramic wool and board tube insulation K type thermocouple (Chromel / Alumel) exhibits good corrosion resistance Solid-state relay (SSR) type temperature regulator (heat dissipation) Molded ceramic block (interior material) Steel plate with powder coated finish (exterior material)

Applications: Used in laboratory research, materials testing, ceramics, crystal growth, heat treating, annealing, melting, firing, cleaning, etc.
