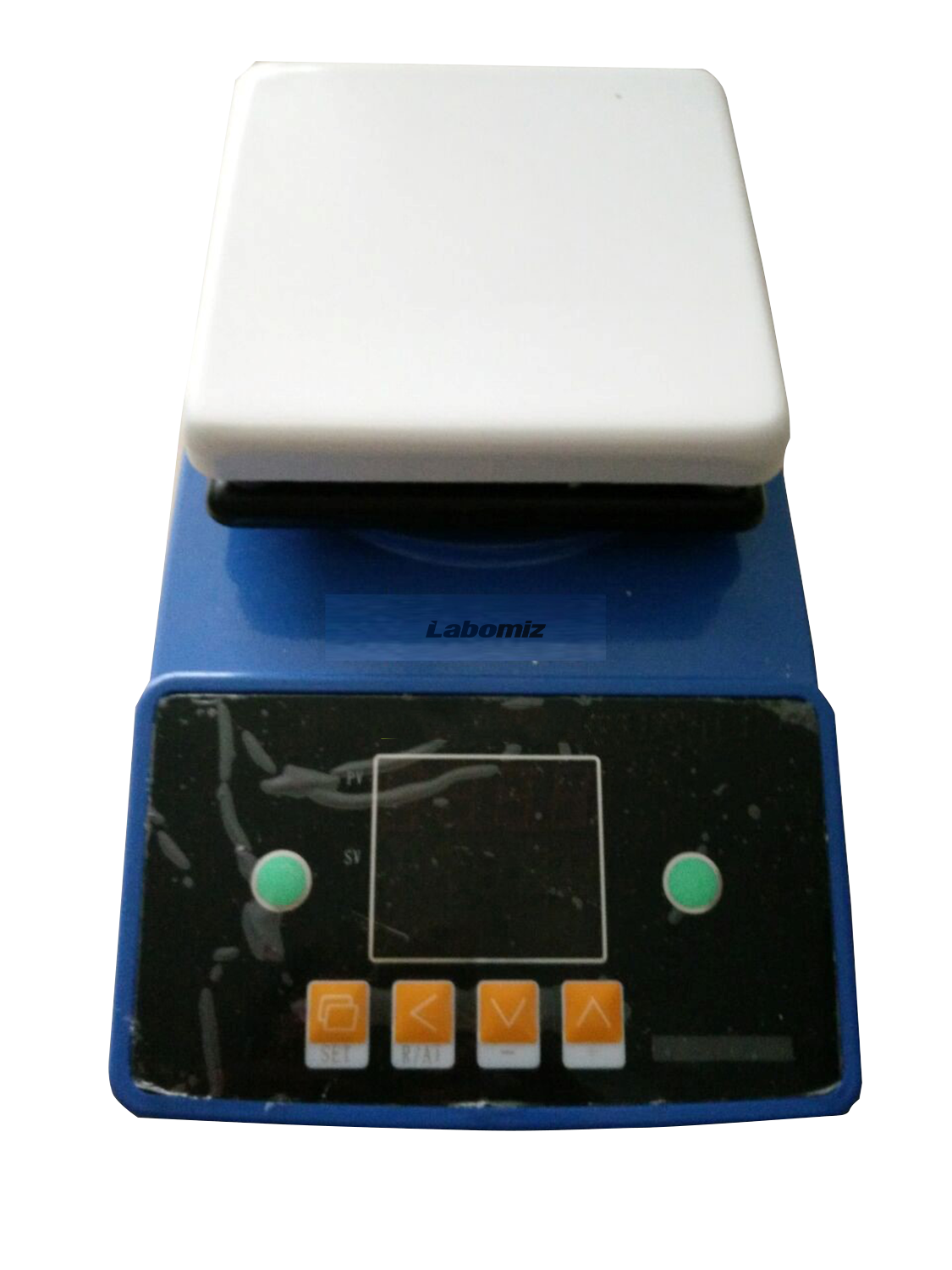

Description : Digital display ceramic hotplate MTHP-5D is an intelligent hot plate with a PID controlled temperature of 400 °C for uniform heat distribution. Features a heating capacity for flasks ranging from 50 ml to 15 L. It offers digital temperature control and it contains an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple controls, and measures the hotplate stirrer temperature.

Specifications :

Heat capacity	50 ml ̴15 L
Ceramic plate dimension	280 mm × 280 mm
Power	750 W
Temperature	400 °C
Temperature accuracy	± 1 °C
Voltage	160 V ̴240 V, 110 V ̴120 V
Weight	9.3 kg

Features : Continuous working time PID controlled temperature Digital display

Applications: Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

Standard Accessories: Accessories No Accessories Quantity A1 Removable holder 1 A2 Clamp with screw 1 A3 Inner Thermocouple 4 -spin 1 A4 Outer Thermocouple 4-spins 1
