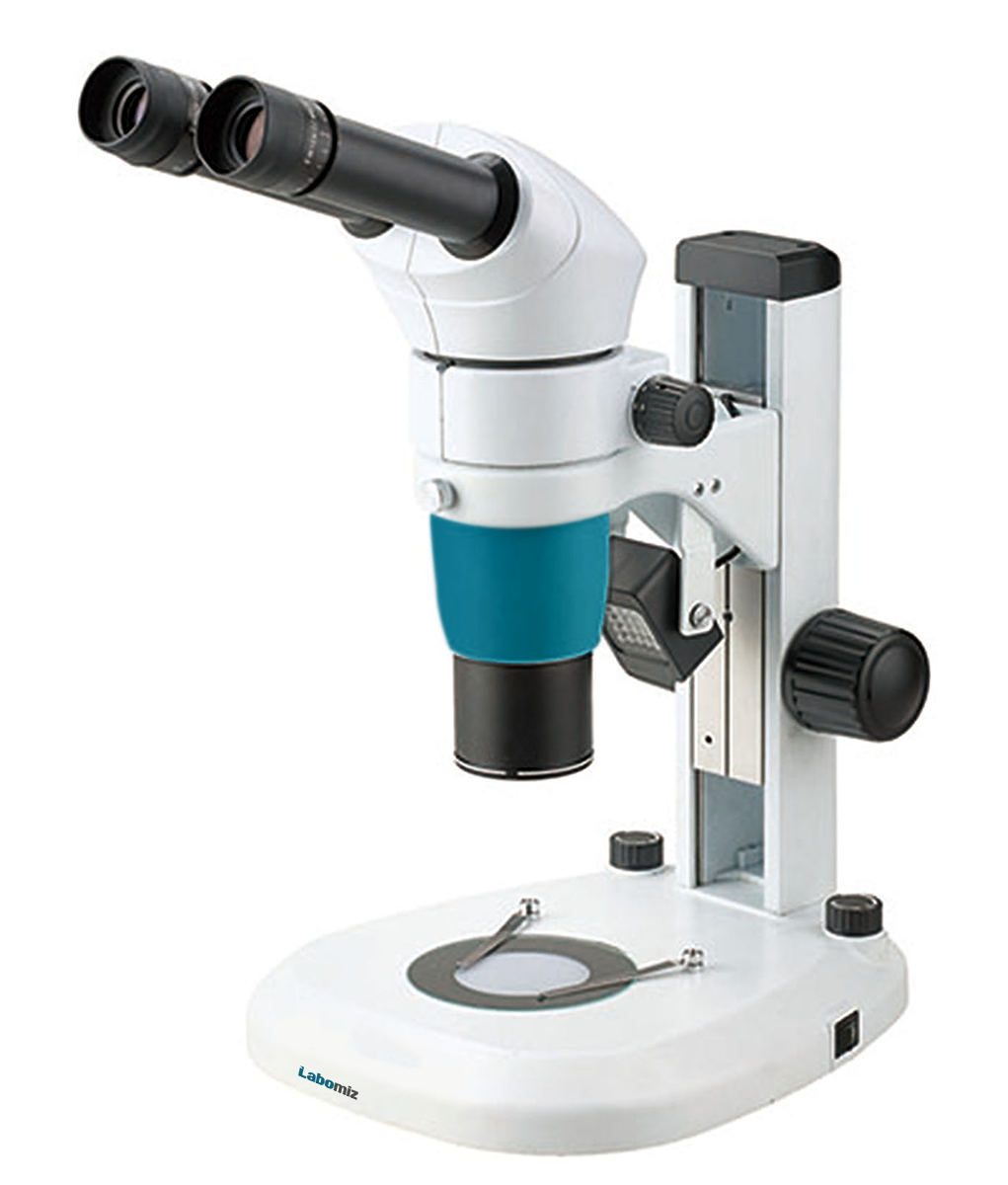

Description : Zoom stereo microscope MZSM-7A is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image remain in focus throughout the zoom range. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.

Specifications :

Viewing head	Binocular
Zoom ratio	1: 6
Eyepiece (Extra wide field eyepiece )	EW10X/ Φ22 mm
Inclination	20°
Inter-pupillary distance	55 mm ⁓ 75 mm
Zoom objective	0.8X ⁓ 5X
Objective	Plan achromatic objective 1X W.D : 78 mm
Focusing range	105 mm
Dimensions	360 × 310 × 670 mm
Weight	8 kg

Features : Infinity parallel zoom optical system ( excellent image quality ) large viewing field and long working distance Coarse focus knob with tension adjustment to move the objective lenses Ergonomic design increases productivity Transmission and reflection illumination ( Adjustable ) Video and photo adaptor ( optional )

Applications: Used in Industrial, medical and scientific research field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 70ZSMA1 Viewing head Binocular ( Tilt, Inclination : 0°? 35° ) Interpupilary distance : 55 mm ? 75 mm 70ZSMA2 Eyepiece WF15X/ ?16 mm 70ZSMA3 Eyepiece WF20X/ ?12 mm 70ZSMA4 Eyepiece WF30X/ ? 12 mm 70ZSMA5 Eyepiece 10X Eyepiece with cross line 70ZSMA6 Objective Achromatic objective 0.3X, W.D : 276 mm 70ZSMA7 Objective Plan apochromatic objective 0.5X, W.D : 126 mm 70ZSMA8 Objective Plan achromatic objective 2X, W.D : 32.5 mm 70ZSMA9 Adaptor 0.5X objective 70ZSMA10 Focusing unit Coaxial coarse and fine focusing stand 70ZSMA11 Polarizing attachment Polarizer and analyzer 70ZSMA12 Illumination LED ring illuminator 70ZSMA13 Illumination Fluorescent ring illuminator 70ZSMA14 Illumination Cold light illumination with dual light guide 70ZSMA15 Illumination Coaxial illuminator 70ZSMA16 Photo attachment Nikon ( Connect to Nikon digital single lens reflex ) 70ZSMA17 Photo attachment Canon ( Connect to Canon digital single lens reflex ) 70ZSMA18 Video attachment 1X C-mount 70ZSMA19 Attachment Dark field attachment 70ZSMA20 Attachment Movable stage 70ZSMA21 Attachment Temperature controlled stage and power supplier 70ZSMA22 Attachment Epi-fluorescent attachment 70ZSMA23 Attachment Iris diaphragm 70ZSMA24 Attachment Beamsplitter ( one port ) 70ZSMA25 Attachment Beamsplitter ( two ports ) 70ZSMA26 Attachment LCD attachment
