V-type mixer MVTM-1D | Labomiz | Laboratory Equipment

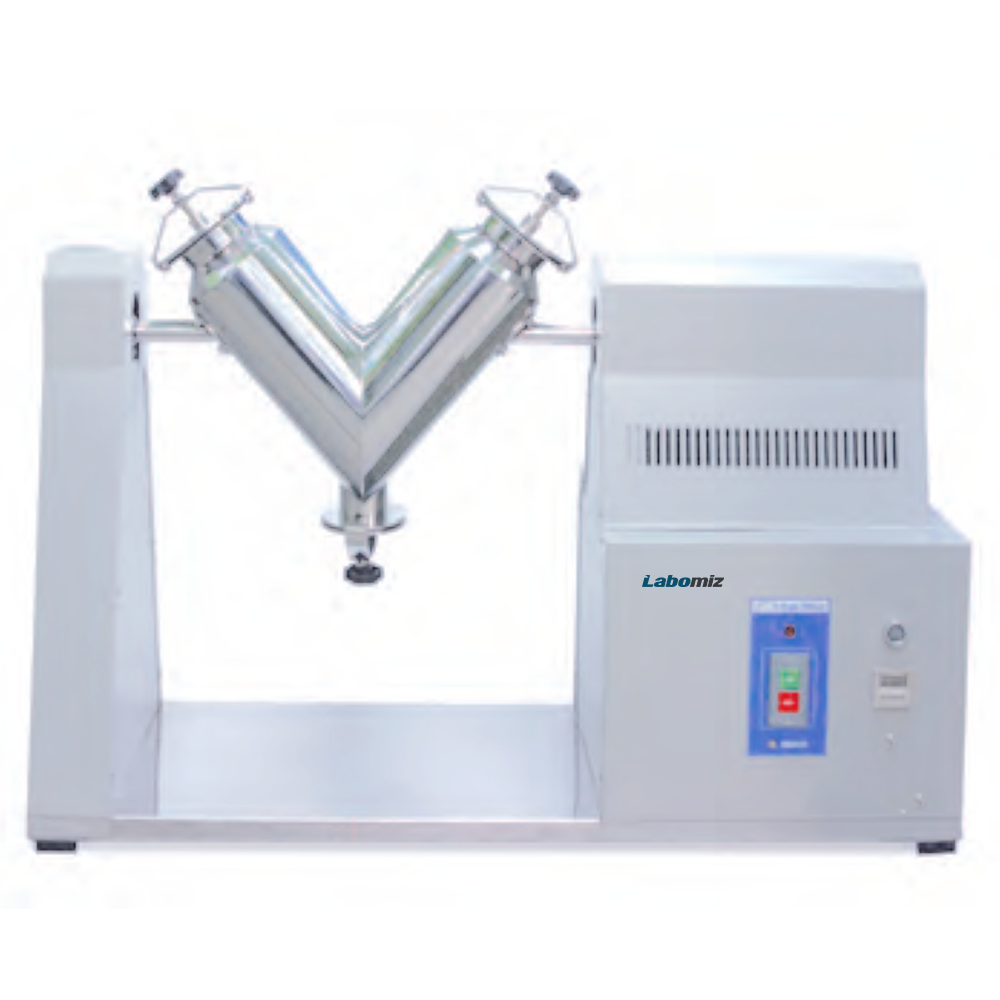

V-type mixer MVTM-1D

V-type mixer MVTM-1D is equipped with gyration system for quick diffusion. A horizontal shaft ensures a perfect and quick homogenization of mixing components. Double swing axis rotation improves mixing efficiency with no dead angle. Blending time depends on the properties of material to be blended.

Vessel capacity	70 L
Mixable capacity	30 L
Vessel rotating speed	36 rpm
Impeller rotor power	1hp
Vessel height ( from bottom )	600 mm
Drum motor power	2 hp
Impeller rotor speed	600 rpm
Power ( 1 phase )	AC 230 V 50 Hz / 60 Hz
Overall dimensions ( W × D × H )	1660 × 650 × 1300 mm
Net weight	280 kg

V shaped drum and impeller rotators

Homogeneous mixing on 360° rotation

Unit power on-off buttons

Corrosion resistant stainless steel plate (vessel material)

Steel plate with powder coated finish (body material)

Used for dry blending, pharmaceuticals, food products, metals, ceramic powders, fertilizers, cosmetics, polyethylene, pesticides, etc.

MVTM-1D
